linux之网络子系统-路由子系统（1）
一、路由缓存
收到报文或者发送报文的时候都需要查找路由表，频繁的路由表查找操作时需要耗费一部分CPU，linux提供了路由缓存来减少路由表的查询，路由缓存由hash 表组织而成，路由缓存的初始化放在路由初始化函数 ip_rt_init 中，当路由缓存没有命中的时候会去查找路由表，查找成功则会添加到路由缓存里。
有两个地方需要查找缓存：一个是ip_rcv() 接收报文时，一个是发送报文的时候。
路由缓存初始化流程：
inet_init() ->ip_init()->ip_rt_init();
补充一个inet_init 初始化时，是先执行 arp_init(),再执行ip_init(),说明arp 模块是依赖。
下面分析一下 ip_rt_init ：
//kernel/net/ipv4/route.cint __init ip_rt_init(void)
{void *idents_hash;int cpu;
// 建立路由缓存hash 表/* For modern hosts, this will use 2 MB of memory */idents_hash = alloc_large_system_hash("IP idents",sizeof(*ip_idents) + sizeof(*ip_tstamps),0,16, /* one bucket per 64 KB */HASH_ZERO,NULL,&ip_idents_mask,2048,256*1024);ip_idents = idents_hash;prandom_bytes(ip_idents, (ip_idents_mask + 1) * sizeof(*ip_idents));ip_tstamps = idents_hash + (ip_idents_mask + 1) * sizeof(*ip_idents);for_each_possible_cpu(cpu) {struct uncached_list *ul = &per_cpu(rt_uncached_list, cpu);INIT_LIST_HEAD(&ul->head);spin_lock_init(&ul->lock);}
#ifdef CONFIG_IP_ROUTE_CLASSID //基于路由分类器，每CPU分配256个变量。目前我的板子没有打开ip_rt_acct = __alloc_percpu(256 * sizeof(struct ip_rt_acct), __alignof__(struct ip_rt_acct));if (!ip_rt_acct)panic("IP: failed to allocate ip_rt_acct\n");
#endif//路由缓存池ipv4_dst_ops.kmem_cachep =kmem_cache_create("ip_dst_cache", sizeof(struct rtable), 0,SLAB_HWCACHE_ALIGN|SLAB_PANIC, NULL);ipv4_dst_blackhole_ops.kmem_cachep = ipv4_dst_ops.kmem_cachep;//初始化每CPU变量if (dst_entries_init(&ipv4_dst_ops) < 0)panic("IP: failed to allocate ipv4_dst_ops counter\n");//初始化每CPU变量if (dst_entries_init(&ipv4_dst_blackhole_ops) < 0)panic("IP: failed to allocate ipv4_dst_blackhole_ops counter\n");//设置gc 时间和缓存最大数量ipv4_dst_ops.gc_thresh = ~0;ip_rt_max_size = INT_MAX;//初始化devinet_init();//注册通知链和创建alias缓存ip_fib_init();if (ip_rt_proc_init())pr_err("Unable to create route proc files\n");
#ifdef CONFIG_XFRMxfrm_init();xfrm4_init();
#endif//注册netlink 消息rtnl_register(PF_INET, RTM_GETROUTE, inet_rtm_getroute, NULL,RTNL_FLAG_DOIT_UNLOCKED);#ifdef CONFIG_SYSCTLregister_pernet_subsys(&sysctl_route_ops);
#endifregister_pernet_subsys(&rt_genid_ops);register_pernet_subsys(&ipv4_inetpeer_ops);return 0;
}
低版本的内核是把路由缓存表定义为 rt_hash_table, 高版本的内核 是 idents_hash 。我分析的内核版本是5.10.* 。
初始化完成后，如何被调用？
首先是输入函数的查询：
网络数据接收调用栈：
网卡驱动中断->NAPI 轮询接收报文-> __netif_receive_skb->deliver_skb-> ip_rcv -> ip_rcv_finished -> ip_local_deliver -> ip_local_deliver_finished -> tcp_v4_rcv -> tcp_v4_do_rcv -> tcp_rcv_established -> tcp_data_queue ->sk_data_ready
ip_rcv() 函数：
// kernel/net/ipv4/ip_input.c
/** IP receive entry point*/
int ip_rcv(struct sk_buff *skb, struct net_device *dev, struct packet_type *pt,struct net_device *orig_dev)
{struct net *net = dev_net(dev);skb = ip_rcv_core(skb, net);//IP层主要处理函数if (skb == NULL)return NET_RX_DROP;
//钩子函数，通过iptables的NF_INET_PRE_ROUTING链，如果继续则进入ip_rcv_finish return NF_HOOK(NFPROTO_IPV4, NF_INET_PRE_ROUTING,net, NULL, skb, dev, NULL,ip_rcv_finish);
}
ip_rcv_core :
//kernel/net/ipv4/ip_input.c
/** Main IP Receive routine.*/
static struct sk_buff *ip_rcv_core(struct sk_buff *skb, struct net *net)
{const struct iphdr *iph;u32 len;/* When the interface is in promisc. mode, drop all the crap* that it receives, do not try to analyse it.*/if (skb->pkt_type == PACKET_OTHERHOST)// 丢弃这个类型的包goto drop;__IP_UPD_PO_STATS(net, IPSTATS_MIB_IN, skb->len);skb = skb_share_check(skb, GFP_ATOMIC);if (!skb) {__IP_INC_STATS(net, IPSTATS_MIB_INDISCARDS);goto out;}// 尝试以最小长度获取ip 头，获取不到则返回errorif (!pskb_may_pull(skb, sizeof(struct iphdr)))goto inhdr_error;//获取ip 头iph = ip_hdr(skb);/** RFC1122: 3.2.1.2 MUST silently discard any IP frame that fails the checksum.** Is the datagram acceptable?** 1. Length at least the size of an ip header* 2. Version of 4* 3. Checksums correctly. [Speed optimisation for later, skip loopback checksums]* 4. Doesn't have a bogus length*///检查IP头的长度和版本if (iph->ihl < 5 || iph->version != 4)goto inhdr_error;BUILD_BUG_ON(IPSTATS_MIB_ECT1PKTS != IPSTATS_MIB_NOECTPKTS + INET_ECN_ECT_1);BUILD_BUG_ON(IPSTATS_MIB_ECT0PKTS != IPSTATS_MIB_NOECTPKTS + INET_ECN_ECT_0);BUILD_BUG_ON(IPSTATS_MIB_CEPKTS != IPSTATS_MIB_NOECTPKTS + INET_ECN_CE);__IP_ADD_STATS(net,IPSTATS_MIB_NOECTPKTS + (iph->tos & INET_ECN_MASK),max_t(unsigned short, 1, skb_shinfo(skb)->gso_segs));// 尝试以ip头携带的ip头部长度获取ip头，获取失败返回errorif (!pskb_may_pull(skb, iph->ihl*4))goto inhdr_error;iph = ip_hdr(skb);if (unlikely(ip_fast_csum((u8 *)iph, iph->ihl)))goto csum_error;//skb的长度，比ip头部携带的ip 包总长度小，丢弃报文//ip包总长度，比ip头部长度小，返回errorlen = ntohs(iph->tot_len);if (skb->len < len) {__IP_INC_STATS(net, IPSTATS_MIB_INTRUNCATEDPKTS);goto drop;} else if (len < (iph->ihl*4))goto inhdr_error;/* Our transport medium may have padded the buffer out. Now we know it* is IP we can trim to the true length of the frame.* Note this now means skb->len holds ntohs(iph->tot_len).*/if (pskb_trim_rcsum(skb, len)) {__IP_INC_STATS(net, IPSTATS_MIB_INDISCARDS);goto drop;}iph = ip_hdr(skb);//获取传输层的数据指针skb->transport_header = skb->network_header + iph->ihl*4;/* Remove any debris in the socket control block */memset(IPCB(skb), 0, sizeof(struct inet_skb_parm));IPCB(skb)->iif = skb->skb_iif;/* Must drop socket now because of tproxy. */if (!skb_sk_is_prefetched(skb))skb_orphan(skb);return skb;csum_error:__IP_INC_STATS(net, IPSTATS_MIB_CSUMERRORS);
inhdr_error:__IP_INC_STATS(net, IPSTATS_MIB_INHDRERRORS);
drop:kfree_skb(skb);
out:return NULL;
}
接着看NF_INET_PRE_ROUTING 路由之前的函数 ip_rcv_finish：
//kernel/net/ipv4/ip_input.cstatic int ip_rcv_finish(struct net *net, struct sock *sk, struct sk_buff *skb)
{struct net_device *dev = skb->dev;int ret;/* if ingress device is enslaved to an L3 master device pass the* skb to its handler for processing*///如果数据报属于L3层，则传递给其处理程序进行处理skb = l3mdev_ip_rcv(skb);if (!skb)return NET_RX_SUCCESS;ret = ip_rcv_finish_core(net, sk, skb, dev, NULL);//dst_input 实际上会调用skb->dst->input(skb). input 函数会根据路由信息设置为合适的//函数指针，如果是递交到本地的则为 ip_local_deliver, 若是转发则为 ip_forward.if (ret != NET_RX_DROP)ret = dst_input(skb);return ret;
}
ip_rcv_finish_core :
// kernel/net/ipv4/ip_input.cstatic int ip_rcv_finish_core(struct net *net, struct sock *sk,struct sk_buff *skb, struct net_device *dev,const struct sk_buff *hint)
{const struct iphdr *iph = ip_hdr(skb);int (*edemux)(struct sk_buff *skb);struct rtable *rt;int err;//这个判断似乎是在缓存中查找if (ip_can_use_hint(skb, iph, hint)) {err = ip_route_use_hint(skb, iph->daddr, iph->saddr, iph->tos,dev, hint);if (unlikely(err))goto drop_error;}if (net->ipv4.sysctl_ip_early_demux &&!skb_dst(skb) &&!skb->sk &&!ip_is_fragment(iph)) {const struct net_protocol *ipprot;int protocol = iph->protocol;ipprot = rcu_dereference(inet_protos[protocol]);if (ipprot && (edemux = READ_ONCE(ipprot->early_demux))) {err = INDIRECT_CALL_2(edemux, tcp_v4_early_demux,udp_v4_early_demux, skb);if (unlikely(err))goto drop_error;/* must reload iph, skb->head might have changed */iph = ip_hdr(skb);}}/** Initialise the virtual path cache for the packet. It describes* how the packet travels inside Linux networking.*/// 为数据包初始化虚拟路径缓存，它描述了数据包是如何在linux网络中传播的//通常从外界接收的数据包,skb->dst不会包含路由信息,暂时还不知道在何处会设置这个字段//ip_route_input函数会根据路由表设置路由信息if (!skb_valid_dst(skb)) {err = ip_route_input_noref(skb, iph->daddr, iph->saddr,iph->tos, dev);if (unlikely(err))goto drop_error;}
更新统计数据
#ifdef CONFIG_IP_ROUTE_CLASSIDif (unlikely(skb_dst(skb)->tclassid)) {struct ip_rt_acct *st = this_cpu_ptr(ip_rt_acct);u32 idx = skb_dst(skb)->tclassid;st[idx&0xFF].o_packets++;st[idx&0xFF].o_bytes += skb->len;st[(idx>>16)&0xFF].i_packets++;st[(idx>>16)&0xFF].i_bytes += skb->len;}
#endif
如果IP头部大于20字节，则表示IP头部包含IP选项，需要进行选项处理if (iph->ihl > 5 && ip_rcv_options(skb, dev))goto drop;
skb_rtable函数等同于skb_dst函数，获取skb->dstrt = skb_rtable(skb);if (rt->rt_type == RTN_MULTICAST) {__IP_UPD_PO_STATS(net, IPSTATS_MIB_INMCAST, skb->len);} else if (rt->rt_type == RTN_BROADCAST) {__IP_UPD_PO_STATS(net, IPSTATS_MIB_INBCAST, skb->len);} else if (skb->pkt_type == PACKET_BROADCAST ||skb->pkt_type == PACKET_MULTICAST) {struct in_device *in_dev = __in_dev_get_rcu(dev);/* RFC 1122 3.3.6:** When a host sends a datagram to a link-layer broadcast* address, the IP destination address MUST be a legal IP* broadcast or IP multicast address.** A host SHOULD silently discard a datagram that is received* via a link-layer broadcast (see Section 2.4) but does not* specify an IP multicast or broadcast destination address.** This doesn't explicitly say L2 *broadcast*, but broadcast is* in a way a form of multicast and the most common use case for* this is 802.11 protecting against cross-station spoofing (the* so-called "hole-196" attack) so do it for both.*/if (in_dev &&IN_DEV_ORCONF(in_dev, DROP_UNICAST_IN_L2_MULTICAST))goto drop;}return NET_RX_SUCCESS;drop:kfree_skb(skb);return NET_RX_DROP;drop_error:if (err == -EXDEV)__NET_INC_STATS(net, LINUX_MIB_IPRPFILTER);goto drop;
}
ip_route_input_noref : 开始进入路由
int ip_route_input_noref(struct sk_buff *skb, __be32 daddr, __be32 saddr,u8 tos, struct net_device *dev)
{struct fib_result res;int err;tos &= IPTOS_RT_MASK;rcu_read_lock();err = ip_route_input_rcu(skb, daddr, saddr, tos, dev, &res);rcu_read_unlock();return err;
}
EXPORT_SYMBOL(ip_route_input_noref);ip_route_input_rcu 函数 的功能：如果缓存没有命中，就判断目的地址是否是多播地址，多播地址就调用 ip_route_input_mc，否则调用ip_route_input_slow函数，该函数会查找路由表，最终会调用fib_lookup函数查找。路由表的查询，后面在接着分析。
ip_route_input_slow函数，如果查询路由表之后，发现是发给本机，dst->input =ip_local_deliver ；
ip_local_deliver：
/** Deliver IP Packets to the higher protocol layers.*/
int ip_local_deliver(struct sk_buff *skb)
{/** Reassemble IP fragments.*/// 分片重组struct net *net = dev_net(skb->dev);if (ip_is_fragment(ip_hdr(skb))) {if (ip_defrag(net, skb, IP_DEFRAG_LOCAL_DELIVER))return 0;}//经过OCAL_IN 钩子函数return NF_HOOK(NFPROTO_IPV4, NF_INET_LOCAL_IN,net, NULL, skb, skb->dev, NULL,ip_local_deliver_finish);
}
ip_local_deliver_finish
//kernel/net/ipv4/ip_input.cstatic int ip_local_deliver_finish(struct net *net, struct sock *sk, struct sk_buff *skb)
{//去掉 ip 头__skb_pull(skb, skb_network_header_len(skb));rcu_read_lock();ip_protocol_deliver_rcu(net, skb, ip_hdr(skb)->protocol);rcu_read_unlock();return 0;
}。。。
INDIRECT_CALLABLE_DECLARE(int udp_rcv(struct sk_buff *)); //接收函数间接声明
INDIRECT_CALLABLE_DECLARE(int tcp_v4_rcv(struct sk_buff *));
void ip_protocol_deliver_rcu(struct net *net, struct sk_buff *skb, int protocol)
{const struct net_protocol *ipprot;int raw, ret;resubmit://原始套接口，复制一个副本，输出到该套接口raw = raw_local_deliver(skb, protocol);//获取协议处理结构ipprot = rcu_dereference(inet_protos[protocol]);if (ipprot) {if (!ipprot->no_policy) {if (!xfrm4_policy_check(NULL, XFRM_POLICY_IN, skb)) {kfree_skb(skb);return;}nf_reset_ct(skb);}//注册tcp 和udp 接收函数ret = INDIRECT_CALL_2(ipprot->handler, tcp_v4_rcv, udp_rcv,skb);if (ret < 0) {protocol = -ret;goto resubmit;}__IP_INC_STATS(net, IPSTATS_MIB_INDELIVERS);} else {if (!raw) {// 原始套接口未接收或者接收异常if (xfrm4_policy_check(NULL, XFRM_POLICY_IN, skb)) {__IP_INC_STATS(net, IPSTATS_MIB_INUNKNOWNPROTOS);/* 发送icmp */icmp_send(skb, ICMP_DEST_UNREACH,ICMP_PROT_UNREACH, 0);}kfree_skb(skb);} else {/* 原始套接口接收 */__IP_INC_STATS(net, IPSTATS_MIB_INDELIVERS);/* 释放包 */consume_skb(skb);}}
}
接下来就是传输层：
下面根据IP报文协议，以TCP 为例，TCP 的接收函数为：int tcp_v4_rcv(struct sk_buff *skb)。
tcp_v4_rcv：
/** From tcp_input.c*/int tcp_v4_rcv(struct sk_buff *skb)
{struct net *net = dev_net(skb->dev);struct sk_buff *skb_to_free;int sdif = inet_sdif(skb);int dif = inet_iif(skb);const struct iphdr *iph;const struct tcphdr *th;bool refcounted;struct sock *sk;int ret;
/* 如果不是发往本机的就直接丢弃 */if (skb->pkt_type != PACKET_HOST)goto discard_it;/* Count it even if it's bad */__TCP_INC_STATS(net, TCP_MIB_INSEGS);/*如果 TCP 段在传输过程中被分片了，则到达本地后会在 IP 层重新组装。组装完成后，报文分片都存储在链表中。在此，需把存储在分片中的报文复制到 SKB 的线性存储区域中。如果发生异常，则丢弃该报文。*/if (!pskb_may_pull(skb, sizeof(struct tcphdr)))goto discard_it;th = (const struct tcphdr *)skb->data;/*如果 TCP 的首部长度小于不带数据的 TCP 的首部长度，则说明 TCP 数据异常。统计相关信息后，丢弃。*/if (unlikely(th->doff < sizeof(struct tcphdr) / 4))goto bad_packet;
//保证skb的线性区域至少包括实际的TCP首部if (!pskb_may_pull(skb, th->doff * 4))goto discard_it;/* An explanation is required here, I think.* Packet length and doff are validated by header prediction,* provided case of th->doff==0 is eliminated.* So, we defer the checks. *///验证 TCP 首部中的校验和，如校验和有误，则说明报文已损坏，统计相关信息后丢弃。if (skb_checksum_init(skb, IPPROTO_TCP, inet_compute_pseudo))goto csum_error;
//初始化skb中的控制块th = (const struct tcphdr *)skb->data;iph = ip_hdr(skb);//IP头
/* 在 ehash 或 bhash 散列表中根据地址和端口来查找传输控制块。如果在 ehash 中找到，则表示已经经历了三次握手并且已建立了连接，可以进行正常的通信。如果在 bhash 中找到，则表示已经绑定已经绑定了端口，处于侦听状态。如果在两个散列表中都查找不到，说明此时对应的传输控制块还没有创建，跳转到no_tcp_socket 处处理。*/lookup:sk = __inet_lookup_skb(&tcp_hashinfo, skb, __tcp_hdrlen(th), th->source,th->dest, sdif, &refcounted);if (!sk)goto no_tcp_socket;process:
//TCP_TIME_WAIT需要做特殊处理，这里先不关注if (sk->sk_state == TCP_TIME_WAIT)goto do_time_wait;if (sk->sk_state == TCP_NEW_SYN_RECV) {struct request_sock *req = inet_reqsk(sk);bool req_stolen = false;struct sock *nsk;sk = req->rsk_listener;if (unlikely(tcp_v4_inbound_md5_hash(sk, skb, dif, sdif))) {sk_drops_add(sk, skb);reqsk_put(req);goto discard_it;}if (tcp_checksum_complete(skb)) {reqsk_put(req);goto csum_error;}if (unlikely(sk->sk_state != TCP_LISTEN)) {inet_csk_reqsk_queue_drop_and_put(sk, req);goto lookup;}/* We own a reference on the listener, increase it again* as we might lose it too soon.*/sock_hold(sk);refcounted = true;nsk = NULL;if (!tcp_filter(sk, skb)) {th = (const struct tcphdr *)skb->data;iph = ip_hdr(skb);tcp_v4_fill_cb(skb, iph, th);nsk = tcp_check_req(sk, skb, req, false, &req_stolen);}if (!nsk) {reqsk_put(req);if (req_stolen) {/* Another cpu got exclusive access to req* and created a full blown socket.* Try to feed this packet to this socket* instead of discarding it.*/tcp_v4_restore_cb(skb);sock_put(sk);goto lookup;}goto discard_and_relse;}if (nsk == sk) {reqsk_put(req);tcp_v4_restore_cb(skb);} else if (tcp_child_process(sk, nsk, skb)) {tcp_v4_send_reset(nsk, skb);goto discard_and_relse;} else {sock_put(sk);return 0;}}
/*ttl 小于给定的最小的 ttl*/if (unlikely(iph->ttl < inet_sk(sk)->min_ttl)) {__NET_INC_STATS(net, LINUX_MIB_TCPMINTTLDROP);goto discard_and_relse;}
//查找 IPsec 数据库，如果查找失败，进行相应处理.if (!xfrm4_policy_check(sk, XFRM_POLICY_IN, skb))goto discard_and_relse;
//md5 相关if (tcp_v4_inbound_md5_hash(sk, skb, dif, sdif))goto discard_and_relse;nf_reset_ct(skb);
//TCP套接字过滤器，如果数据包被过滤掉了，结束处理过程 -> sk_filter_trim_capif (tcp_filter(sk, skb))goto discard_and_relse;th = (const struct tcphdr *)skb->data;iph = ip_hdr(skb);tcp_v4_fill_cb(skb, iph, th);
//到了传输层，该字段已经没有意义，将其置为空skb->dev = NULL;
/*LISTEN 状态 */if (sk->sk_state == TCP_LISTEN) {ret = tcp_v4_do_rcv(sk, skb);//交由tcp_v4_do_rcv()处理goto put_and_return;}sk_incoming_cpu_update(sk);
//先持锁，这样进程上下文和其它软中断则无法操作该TCPbh_lock_sock_nested(sk);tcp_segs_in(tcp_sk(sk), skb);ret = 0;//如果当前TCB没有被进程上下文锁定，首先尝试将数据包放入prequeue队列，//如果prequeue队列没有处理，再将其处理后放入receive队列。如果TCB已//经被进程上下文锁定，那么直接将数据包放入backlog队列if (!sock_owned_by_user(sk)) {skb_to_free = sk->sk_rx_skb_cache;sk->sk_rx_skb_cache = NULL;ret = tcp_v4_do_rcv(sk, skb);} else {if (tcp_add_backlog(sk, skb))//TCB被用户进程锁定，直接将数据包放入backlog队列goto discard_and_relse;skb_to_free = NULL;}bh_unlock_sock(sk);//释放锁if (skb_to_free)__kfree_skb(skb_to_free);put_and_return:if (refcounted)sock_put(sk);//释放TCB引用计数,当计数为 0 的时候，使用 sk\_free 释放传输控制块return ret;//返回处理结果//处理没有创建传输控制块收到报文，校验错误，坏包的情况，给对端发送 RST 报文。
no_tcp_socket:/* 查找 IPsec 数据库，如果查找失败，进行相应处理.*/if (!xfrm4_policy_check(NULL, XFRM_POLICY_IN, skb))goto discard_it;tcp_v4_fill_cb(skb, iph, th);if (tcp_checksum_complete(skb)) {
csum_error:__TCP_INC_STATS(net, TCP_MIB_CSUMERRORS);
bad_packet:__TCP_INC_STATS(net, TCP_MIB_INERRS);} else {tcp_v4_send_reset(NULL, skb);}discard_it:/* Discard frame. */ //丢弃帧kfree_skb(skb);return 0;discard_and_relse:sk_drops_add(sk, skb);if (refcounted)sock_put(sk);goto discard_it;
//处理TIME_WAIT状态
do_time_wait:if (!xfrm4_policy_check(NULL, XFRM_POLICY_IN, skb)) {inet_twsk_put(inet_twsk(sk));减少引用计数goto discard_it;}tcp_v4_fill_cb(skb, iph, th);if (tcp_checksum_complete(skb)) {inet_twsk_put(inet_twsk(sk));goto csum_error;}//根据返回值进行相应处理switch (tcp_timewait_state_process(inet_twsk(sk), skb, th)) {case TCP_TW_SYN: {struct sock *sk2 = inet_lookup_listener(dev_net(skb->dev),&tcp_hashinfo, skb,__tcp_hdrlen(th),iph->saddr, th->source,iph->daddr, th->dest,inet_iif(skb),sdif);if (sk2) {inet_twsk_deschedule_put(inet_twsk(sk));sk = sk2;tcp_v4_restore_cb(skb);refcounted = false;goto process;}}/* to ACK */ /* to ACK */fallthrough;case TCP_TW_ACK:tcp_v4_timewait_ack(sk, skb);break;case TCP_TW_RST:tcp_v4_send_reset(sk, skb);inet_twsk_deschedule_put(inet_twsk(sk));goto discard_it;case TCP_TW_SUCCESS:;}goto discard_it;
}tcp_v4_do_rcv:
/* The socket must have it's spinlock held when we get* here, unless it is a TCP_LISTEN socket.必须有自旋锁，除非是TCP_LISTEN socket.** We have a potential double-lock case here, so even when* doing backlog processing we use the BH locking scheme.* This is because we cannot sleep with the original spinlock* held.*/
我们这里有一个潜在的双锁情况，所以即使在做积压处理时，我们也使用BH锁定方案。这是因为我们不能用原来的自旋锁来睡觉。
int tcp_v4_do_rcv(struct sock *sk, struct sk_buff *skb)
{struct sock *rsk;/* 当状态为ESTABLISHED时，用tcp_rcv_established()接收处理 */if (sk->sk_state == TCP_ESTABLISHED) { /* Fast path */struct dst_entry *dst = sk->sk_rx_dst;sock_rps_save_rxhash(sk, skb);sk_mark_napi_id(sk, skb);if (dst) {if (inet_sk(sk)->rx_dst_ifindex != skb->skb_iif ||!dst->ops->check(dst, 0)) {dst_release(dst);sk->sk_rx_dst = NULL;}}/* 连接已建立时的处理路径 */tcp_rcv_established(sk, skb);return 0;}if (tcp_checksum_complete(skb))goto csum_err;
/* 如果这个sock处于监听状态，被动打开时的处理，包括收到SYN或ACK */if (sk->sk_state == TCP_LISTEN) {struct sock *nsk = tcp_v4_cookie_check(sk, skb);/*NULL，错误nsk == sk，接收到 SYNnsk != sk，接收到 ACK*/if (!nsk)goto discard;if (nsk != sk) {if (tcp_child_process(sk, nsk, skb)) {/* 处理新的sock ，初始化子传输控制块*/rsk = nsk;goto reset;//失败时，给客户端发送 RST 段进行复位}return 0;}} elsesock_rps_save_rxhash(sk, skb);
/* 处理除了ESTABLISHED和TIME_WAIT之外的所有状态 */if (tcp_rcv_state_process(sk, skb)) {rsk = sk;goto reset;}return 0;reset:tcp_v4_send_reset(rsk, skb);/* 发送被动的RST包 */
discard:kfree_skb(skb);/* Be careful here. If this function gets more complicated and* gcc suffers from register pressure on the x86, sk (in %ebx)* might be destroyed here. This current version compiles correctly,* but you have been warned.*/return 0;csum_err:TCP_INC_STATS(sock_net(sk), TCP_MIB_CSUMERRORS);TCP_INC_STATS(sock_net(sk), TCP_MIB_INERRS);goto discard;
}
EXPORT_SYMBOL(tcp_v4_do_rcv);

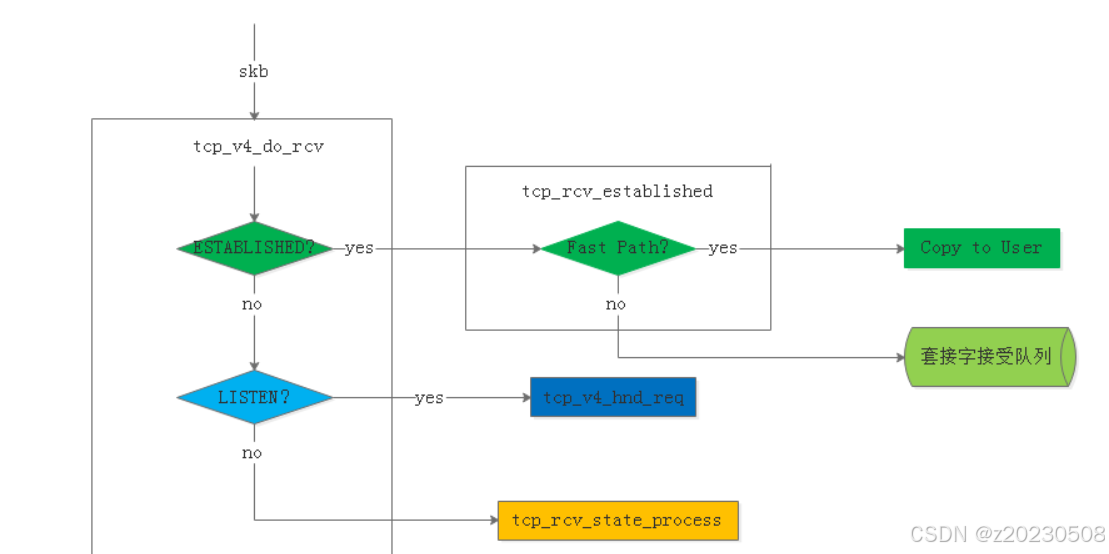

tcp_rcv_state_process :tcp_rcv_state_process实现了 TCP 状态机相对核心的一个部分。该函数可以处理除ESTABLELISHED 和 TIME_WAIT 状态以外的情况下的接收过程。
/** This function implements the receiving procedure of RFC 793 for* all states except ESTABLISHED and TIME_WAIT.* It's called from both tcp_v4_rcv and tcp_v6_rcv and should be* address independent.*/
该函数实现了除已建立状态和TIME_WAIT外的所有状态的RFC 793的接收过程。* 它从tcp_v4_rcv和tcp_v6_rcv都调用，应该是独立的地址。*sk： 传输控制块*skb：缓存块int tcp_rcv_state_process(struct sock *sk, struct sk_buff *skb)
{struct tcp_sock *tp = tcp_sk(sk);struct inet_connection_sock *icsk = inet_csk(sk);const struct tcphdr *th = tcp_hdr(skb);struct request_sock *req;int queued = 0;bool acceptable;switch (sk->sk_state) {case TCP_CLOSE: /* CLOSE 状态的处理代码 */goto discard;case TCP_LISTEN:* LISTEN 状态的处理代码 */if (th->ack)return 1;if (th->rst)goto discard;if (th->syn) {if (th->fin)goto discard;/* It is possible that we process SYN packets from backlog,* so we need to make sure to disable BH and RCU right there.*/rcu_read_lock();local_bh_disable();acceptable = icsk->icsk_af_ops->conn_request(sk, skb) >= 0;local_bh_enable();rcu_read_unlock();if (!acceptable)return 1;consume_skb(skb);return 0;}goto discard;case TCP_SYN_SENT: //客户端发送SYN第一次握手，等待服务端回复SYN+ACK第二次握手tp->rx_opt.saw_tstamp = 0;tcp_mstamp_refresh(tp);queued = tcp_rcv_synsent_state_process(sk, skb, th);if (queued >= 0)return queued;/* Do step6 onward by hand. */tcp_urg(sk, skb, th);__kfree_skb(skb);tcp_data_snd_check(sk);return 0;}tcp_mstamp_refresh(tp);tp->rx_opt.saw_tstamp = 0;req = rcu_dereference_protected(tp->fastopen_rsk,lockdep_sock_is_held(sk));if (req) {bool req_stolen;WARN_ON_ONCE(sk->sk_state != TCP_SYN_RECV &&sk->sk_state != TCP_FIN_WAIT1);if (!tcp_check_req(sk, skb, req, true, &req_stolen))goto discard;}if (!th->ack && !th->rst && !th->syn)goto discard;if (!tcp_validate_incoming(sk, skb, th, 0))return 0;/* step 5: check the ACK field *///对收到的 ACK 段进行处理判断是否正确接收，如果正确接收就会发送返回非零值。acceptable = tcp_ack(sk, skb, FLAG_SLOWPATH |FLAG_UPDATE_TS_RECENT |FLAG_NO_CHALLENGE_ACK) > 0;if (!acceptable) {if (sk->sk_state == TCP_SYN_RECV)return 1; /* send one RST */tcp_send_challenge_ack(sk, skb);goto discard;}switch (sk->sk_state) {case TCP_SYN_RECV: //服务端发送SYN+ACK第二次握手，等待客户端回复ACK第三次握手tp->delivered++; /* SYN-ACK delivery isn't tracked in tcp_ack */if (!tp->srtt_us)tcp_synack_rtt_meas(sk, req);if (req) {tcp_rcv_synrecv_state_fastopen(sk);} else {tcp_try_undo_spurious_syn(sk);tp->retrans_stamp = 0;tcp_init_transfer(sk, BPF_SOCK_OPS_PASSIVE_ESTABLISHED_CB,skb);WRITE_ONCE(tp->copied_seq, tp->rcv_nxt);}smp_mb();//进行一系列的初始化，开启相应拥塞控制等，并且将 TCP 的状态置为 TCP_ESTABLISHED。tcp_set_state(sk, TCP_ESTABLISHED);sk->sk_state_change(sk);/* Note, that this wakeup is only for marginal crossed SYN case.* Passively open sockets are not waked up, because* sk->sk_sleep == NULL and sk->sk_socket == NULL.*///发信号给那些将通过该套接口发送数据的进程，通知它们套接口目前已经可以发送数据了if (sk->sk_socket)sk_wake_async(sk, SOCK_WAKE_IO, POLL_OUT);
//初始化传输控制块的各个字段，对时间戳进行处理。tp->snd_una = TCP_SKB_CB(skb)->ack_seq;tp->snd_wnd = ntohs(th->window) << tp->rx_opt.snd_wscale;tcp_init_wl(tp, TCP_SKB_CB(skb)->seq);if (tp->rx_opt.tstamp_ok)tp->advmss -= TCPOLEN_TSTAMP_ALIGNED;if (!inet_csk(sk)->icsk_ca_ops->cong_control)tcp_update_pacing_rate(sk);/* Prevent spurious tcp_cwnd_restart() on first data packet */tp->lsndtime = tcp_jiffies32;
//更新最近一次的发送数据报的时间，初始化与路径 MTU 有关的成员，并计算有关TCP 首部预测的标志tcp_initialize_rcv_mss(sk);tcp_fast_path_on(tp);break;case TCP_FIN_WAIT1: {//发送SIN+ACK第一次挥手后，等待对方回复ACK第二次挥手int tmo;if (req)tcp_rcv_synrecv_state_fastopen(sk);if (tp->snd_una != tp->write_seq)break;tcp_set_state(sk, TCP_FIN_WAIT2);sk->sk_shutdown |= SEND_SHUTDOWN;sk_dst_confirm(sk);if (!sock_flag(sk, SOCK_DEAD)) {/* Wake up lingering close() */sk->sk_state_change(sk);break;}if (tp->linger2 < 0) {tcp_done(sk);NET_INC_STATS(sock_net(sk), LINUX_MIB_TCPABORTONDATA);return 1;}if (TCP_SKB_CB(skb)->end_seq != TCP_SKB_CB(skb)->seq &&after(TCP_SKB_CB(skb)->end_seq - th->fin, tp->rcv_nxt)) {/* Receive out of order FIN after close() */if (tp->syn_fastopen && th->fin)tcp_fastopen_active_disable(sk);tcp_done(sk);NET_INC_STATS(sock_net(sk), LINUX_MIB_TCPABORTONDATA);return 1;}tmo = tcp_fin_time(sk);if (tmo > TCP_TIMEWAIT_LEN) {inet_csk_reset_keepalive_timer(sk, tmo - TCP_TIMEWAIT_LEN);} else if (th->fin || sock_owned_by_user(sk)) {/* Bad case. We could lose such FIN otherwise.* It is not a big problem, but it looks confusing* and not so rare event. We still can lose it now,* if it spins in bh_lock_sock(), but it is really* marginal case.*/inet_csk_reset_keepalive_timer(sk, tmo);} else {tcp_time_wait(sk, TCP_FIN_WAIT2, tmo);goto discard;}break;}case TCP_CLOSING:if (tp->snd_una == tp->write_seq) {tcp_time_wait(sk, TCP_TIME_WAIT, 0);goto discard;}break;case TCP_LAST_ACK:if (tp->snd_una == tp->write_seq) {tcp_update_metrics(sk);tcp_done(sk);goto discard;}break;}/* step 6: check the URG bit */tcp_urg(sk, skb, th);/* step 7: process the segment text */switch (sk->sk_state) {case TCP_CLOSE_WAIT:case TCP_CLOSING:case TCP_LAST_ACK:if (!before(TCP_SKB_CB(skb)->seq, tp->rcv_nxt)) {if (sk_is_mptcp(sk))mptcp_incoming_options(sk, skb);break;}fallthrough;case TCP_FIN_WAIT1:case TCP_FIN_WAIT2:/* RFC 793 says to queue data in these states,* RFC 1122 says we MUST send a reset.* BSD 4.4 also does reset.*/if (sk->sk_shutdown & RCV_SHUTDOWN) {if (TCP_SKB_CB(skb)->end_seq != TCP_SKB_CB(skb)->seq &&after(TCP_SKB_CB(skb)->end_seq - th->fin, tp->rcv_nxt)) {NET_INC_STATS(sock_net(sk), LINUX_MIB_TCPABORTONDATA);tcp_reset(sk);return 1;}}fallthrough;case TCP_ESTABLISHED://对已接收到的 TCP 段排队，在建立连接阶段一般不会收到 TCP 段tcp_data_queue(sk, skb);queued = 1;break;}/* tcp_data could move socket to TIME-WAIT */
//此时状态不为 CLOSE，故而就回去检测是否数据和 ACK 要发送。//其次，根据 queue 标志来确定是否释放接收到的 TCP 段，如果接收到的 TCP 段已添加到接收队列中，则不释放if (sk->sk_state != TCP_CLOSE) {tcp_data_snd_check(sk);tcp_ack_snd_check(sk);}if (!queued) {
discard:tcp_drop(sk, skb);}return 0;
}
EXPORT_SYMBOL(tcp_rcv_state_process);
tcp_rcv_established :
1、状态为ESTABLISHED时，用tcp_rcv_established()接收处理。
2. 状态为LISTEN时，说明这个sock处于监听状态，用于被动打开的接收处理，包括SYN和ACK。
3. 当状态不为ESTABLISHED或TIME_WAIT时，用tcp_rcv_state_process()处理。
* TCP receive function for the ESTABLISHED state.** It is split into a fast path and a slow path. The fast path is* disabled when:* - A zero window was announced from us - zero window probing* is only handled properly in the slow path.* - Out of order segments arrived.* - Urgent data is expected.* - There is no buffer space left* - Unexpected TCP flags/window values/header lengths are received* (detected by checking the TCP header against pred_flags)* - Data is sent in both directions. Fast path only supports pure senders* or pure receivers (this means either the sequence number or the ack* value must stay constant)* - Unexpected TCP option.** When these conditions are not satisfied it drops into a standard* receive procedure patterned after RFC793 to handle all cases.* The first three cases are guaranteed by proper pred_flags setting,* the rest is checked inline. Fast processing is turned on in* tcp_data_queue when everything is OK.*/
void tcp_rcv_established(struct sock *sk, struct sk_buff *skb)
{const struct tcphdr *th = (const struct tcphdr *)skb->data;struct tcp_sock *tp = tcp_sk(sk);unsigned int len = skb->len;/* TCP congestion window tracking */trace_tcp_probe(sk, skb);tcp_mstamp_refresh(tp);if (unlikely(!sk->sk_rx_dst))inet_csk(sk)->icsk_af_ops->sk_rx_dst_set(sk, skb);/** Header prediction.* The code loosely follows the one in the famous* "30 instruction TCP receive" Van Jacobson mail.** Van's trick is to deposit buffers into socket queue* on a device interrupt, to call tcp_recv function* on the receive process context and checksum and copy* the buffer to user space. smart...** Our current scheme is not silly either but we take the* extra cost of the net_bh soft interrupt processing...* We do checksum and copy also but from device to kernel.*/tp->rx_opt.saw_tstamp = 0;/* pred_flags is 0xS?10 << 16 + snd_wnd* if header_prediction is to be made* 'S' will always be tp->tcp_header_len >> 2* '?' will be 0 for the fast path, otherwise pred_flags is 0 to* turn it off (when there are holes in the receive* space for instance)* PSH flag is ignored.*///预定向标志和输入数据段的标志比较//数据段序列号是否正确if ((tcp_flag_word(th) & TCP_HP_BITS) == tp->pred_flags &&TCP_SKB_CB(skb)->seq == tp->rcv_nxt &&!after(TCP_SKB_CB(skb)->ack_seq, tp->snd_nxt)) {int tcp_header_len = tp->tcp_header_len;/* Timestamp header prediction: tcp_header_len* is automatically equal to th->doff*4 due to pred_flags* match.*//* Check timestamp */
//时间戳选项之外如果还有别的选项就送给Slow Path处理if (tcp_header_len == sizeof(struct tcphdr) + TCPOLEN_TSTAMP_ALIGNED) {/* No? Slow path! */if (!tcp_parse_aligned_timestamp(tp, th))goto slow_path;//对数据包做PAWS快速检查，如果检查走Slow Path处理/* If PAWS failed, check it more carefully in slow path */if ((s32)(tp->rx_opt.rcv_tsval - tp->rx_opt.ts_recent) < 0)goto slow_path;/* DO NOT update ts_recent here, if checksum fails* and timestamp was corrupted part, it will result* in a hung connection since we will drop all* future packets due to the PAWS test.*/}//数据包长度太小if (len <= tcp_header_len) {/* Bulk data transfer: sender */if (len == tcp_header_len) {/* Predicted packet is in window by definition.* seq == rcv_nxt and rcv_wup <= rcv_nxt.* Hence, check seq<=rcv_wup reduces to:*/if (tcp_header_len ==(sizeof(struct tcphdr) + TCPOLEN_TSTAMP_ALIGNED) &&tp->rcv_nxt == tp->rcv_wup)tcp_store_ts_recent(tp);/* We know that such packets are checksummed* on entry.*/tcp_ack(sk, skb, 0);__kfree_skb(skb);tcp_data_snd_check(sk);/* When receiving pure ack in fast path, update* last ts ecr directly instead of calling* tcp_rcv_rtt_measure_ts()*/tp->rcv_rtt_last_tsecr = tp->rx_opt.rcv_tsecr;return;} else { /* Header too small */TCP_INC_STATS(sock_net(sk), TCP_MIB_INERRS);goto discard;}} else {int eaten = 0;bool fragstolen = false;//计算校验和if (tcp_checksum_complete(skb))goto csum_error;if ((int)skb->truesize > sk->sk_forward_alloc)goto step5;/* Predicted packet is in window by definition.* seq == rcv_nxt and rcv_wup <= rcv_nxt.* Hence, check seq<=rcv_wup reduces to:*///复制成功if (tcp_header_len ==(sizeof(struct tcphdr) + TCPOLEN_TSTAMP_ALIGNED) &&tp->rcv_nxt == tp->rcv_wup)tcp_store_ts_recent(tp);tcp_rcv_rtt_measure_ts(sk, skb);//大块数据传送NET_INC_STATS(sock_net(sk), LINUX_MIB_TCPHPHITS);/* Bulk data transfer: receiver *///去掉tcp头部__skb_pull(skb, tcp_header_len);eaten = tcp_queue_rcv(sk, skb, &fragstolen);//更新延迟回答时钟超时间隔值tcp_event_data_recv(sk, skb);if (TCP_SKB_CB(skb)->ack_seq != tp->snd_una) {/* Well, only one small jumplet in fast path... */tcp_ack(sk, skb, FLAG_DATA);tcp_data_snd_check(sk);if (!inet_csk_ack_scheduled(sk))goto no_ack;} else {tcp_update_wl(tp, TCP_SKB_CB(skb)->seq);}/收到数据后回复ack确认__tcp_ack_snd_check(sk, 0);
no_ack:if (eaten)kfree_skb_partial(skb, fragstolen);tcp_data_ready(sk);return;}}slow_path:if (len < (th->doff << 2) || tcp_checksum_complete(skb))goto csum_error;if (!th->ack && !th->rst && !th->syn)goto discard;/** Standard slow path.*/if (!tcp_validate_incoming(sk, skb, th, 1))return;step5:if (tcp_ack(sk, skb, FLAG_SLOWPATH | FLAG_UPDATE_TS_RECENT) < 0)goto discard;tcp_rcv_rtt_measure_ts(sk, skb);/* Process urgent data. *///紧急数据段处理tcp_urg(sk, skb, th);/* step 7: process the segment text *///根据情况将数据复制到应用层或者//将数据加入sk_receive_queue常规队列中tcp_data_queue(sk, skb);tcp_data_snd_check(sk);tcp_ack_snd_check(sk);return;csum_error:TCP_INC_STATS(sock_net(sk), TCP_MIB_CSUMERRORS);TCP_INC_STATS(sock_net(sk), TCP_MIB_INERRS);discard:tcp_drop(sk, skb);
}
EXPORT_SYMBOL(tcp_rcv_established);
用户进程接收：tcp_recvmsg
用户进程调用recvfrom读取套接字缓冲区上的数据，实际是调用tcp_recvmsg函数将数据包从内核地址空间复制到用户考地址空间。
/** This routine copies from a sock struct into the user buffer.** Technical note: in 2.3 we work on _locked_ socket, so that* tricks with *seq access order and skb->users are not required.* Probably, code can be easily improved even more.*/int tcp_recvmsg(struct sock *sk, struct msghdr *msg, size_t len, int nonblock,int flags, int *addr_len)
{//获取TCP套接字结构struct tcp_sock *tp = tcp_sk(sk);int copied = 0;u32 peek_seq;u32 *seq;unsigned long used;int err, inq;int target; /* Read at least this many bytes */long timeo;struct sk_buff *skb, *last;u32 urg_hole = 0;struct scm_timestamping_internal tss;int cmsg_flags;if (unlikely(flags & MSG_ERRQUEUE))return inet_recv_error(sk, msg, len, addr_len);if (sk_can_busy_loop(sk) && skb_queue_empty_lockless(&sk->sk_receive_queue) &&(sk->sk_state == TCP_ESTABLISHED))sk_busy_loop(sk, nonblock);//锁住套接字，其实就是设置sk->sk_lock.owned = 1//当产生软中断调用tcp_v4_rcv获取套接字sock发现//sock处于进程上下文，就会把数据包加入到balock_queue队列中lock_sock(sk);err = -ENOTCONN;//套接字当前处于监听状态就直接跳出if (sk->sk_state == TCP_LISTEN)goto out;cmsg_flags = tp->recvmsg_inq ? 1 : 0;//查实时间，如果是非阻塞模式就为0timeo = sock_rcvtimeo(sk, nonblock);//紧急处理数据/* Urgent data needs to be handled specially. */if (flags & MSG_OOB)goto recv_urg;if (unlikely(tp->repair)) {err = -EPERM;if (!(flags & MSG_PEEK))goto out;if (tp->repair_queue == TCP_SEND_QUEUE)goto recv_sndq;err = -EINVAL;if (tp->repair_queue == TCP_NO_QUEUE)goto out;/* 'common' recv queue MSG_PEEK-ing */}
//未读取数据包的开始序列号seq = &tp->copied_seq;if (flags & MSG_PEEK) {peek_seq = tp->copied_seq;seq = &peek_seq;}//取len和sk->rcvlowat中的最小值//MSG_WAITALL标志是判断是否要接受完整的数据包后再拷贝复制数据包target = sock_rcvlowat(sk, flags & MSG_WAITALL, len);
//主循环，复制数据到用户地址空间直到target为0do {u32 offset;/* Are we at urgent data? Stop if we have read anything or have SIGURG pending. *///遇到紧急数据停止处理跳出循环if (tp->urg_data && tp->urg_seq == *seq) {if (copied)break;//检测套接字上是否有信号等待处理，确保能处理SIGUSR信号。if (signal_pending(current)) {//检查是否超时copied = timeo ? sock_intr_errno(timeo) : -EAGAIN;break;}}/* Next get a buffer. *///循环变量接受缓冲区队列receive_queue队列last = skb_peek_tail(&sk->sk_receive_queue);skb_queue_walk(&sk->sk_receive_queue, skb) {last = skb;/* Now that we have two receive queues this* shouldn't happen.*/if (WARN(before(*seq, TCP_SKB_CB(skb)->seq),"TCP recvmsg seq # bug: copied %X, seq %X, rcvnxt %X, fl %X\n",*seq, TCP_SKB_CB(skb)->seq, tp->rcv_nxt,flags))break;//未读取数据包的序列号和已经读取数据包的序列号差//如果这个差小于数据包长度skb->len，表示这是我们要找的数据包//因为是最小的序列号offset = *seq - TCP_SKB_CB(skb)->seq;//如果是syn表就跳过if (unlikely(TCP_SKB_CB(skb)->tcp_flags & TCPHDR_SYN)) {pr_err_once("%s: found a SYN, please report !\n", __func__);offset--;}//找到了skb，跳转到found_ok_skb处完成复制工作if (offset < skb->len)goto found_ok_skb;//发现是fin包调转到fin处理标签处if (TCP_SKB_CB(skb)->tcp_flags & TCPHDR_FIN)goto found_fin_ok;WARN(!(flags & MSG_PEEK),"TCP recvmsg seq # bug 2: copied %X, seq %X, rcvnxt %X, fl %X\n",*seq, TCP_SKB_CB(skb)->seq, tp->rcv_nxt, flags);}/* Well, if we have backlog, try to process it now yet. *///缓冲区recieve_queue队列中已经没有数据//而且backlog_queue队列中也没有数据了就跳出循环if (copied >= target && !READ_ONCE(sk->sk_backlog.tail))break;if (copied) {//检查套接字的状态是否是关闭//或者收到远端的断开请求，则要跳出复制循环if (sk->sk_err ||sk->sk_state == TCP_CLOSE ||(sk->sk_shutdown & RCV_SHUTDOWN) ||!timeo ||signal_pending(current))break;} else {//copied为0表示应用层没有复制到数据，没有复制到数据有三种可能//第一是套接字已经关闭了，第二是缓冲区根本没有数据 //第三是其他错误if (sock_flag(sk, SOCK_DONE))break;if (sk->sk_err) {copied = sock_error(sk);break;}if (sk->sk_shutdown & RCV_SHUTDOWN)break;if (sk->sk_state == TCP_CLOSE) {/* This occurs when user tries to read* from never connected socket.*///当用户关闭套接字会设置SOCK_DON标志//连接状态是TCP_CLOSE，SOCK_DONE标志就不会0copied = -ENOTCONN;break;}//查看是否阻塞，不阻塞直接返回//返回的错误标志是EAGAINif (!timeo) {copied = -EAGAIN;break;}//读取数据失败可能是其他错误//返回错误原因if (signal_pending(current)) {copied = sock_intr_errno(timeo);break;}}//根据已经复制数据长度copied清除recieve_queue队列//并且回复对端ack包tcp_cleanup_rbuf(sk, copied);if (copied >= target) {/* Do not sleep, just process backlog. */release_sock(sk);lock_sock(sk);} else {sk_wait_data(sk, &timeo, last);}if ((flags & MSG_PEEK) &&(peek_seq - copied - urg_hole != tp->copied_seq)) {net_dbg_ratelimited("TCP(%s:%d): Application bug, race in MSG_PEEK\n",current->comm,task_pid_nr(current));peek_seq = tp->copied_seq;}continue;
found_ok_skb://处理sk_receive_queue队列中的数据/* Ok so how much can we use? */used = skb->len - offset;if (len < used)used = len;/* Do we have urgent data here? *///首先查看是否有紧急数据需要处理//如果设置套接字选项设置了SO_OOBINLINE就不需要处理紧急数据//因为有单独处理if (tp->urg_data) {u32 urg_offset = tp->urg_seq - *seq;if (urg_offset < used) {if (!urg_offset) {if (!sock_flag(sk, SOCK_URGINLINE)) {WRITE_ONCE(*seq, *seq + 1);urg_hole++;offset++;used--;if (!used)goto skip_copy;}} elseused = urg_offset;}}if (!(flags & MSG_TRUNC)) {//将数据包从内核地址空间复制到用户地址空间err = skb_copy_datagram_msg(skb, offset, msg, used);if (err) {/* Exception. Bailout! */if (!copied)copied = -EFAULT;break;}}WRITE_ONCE(*seq, *seq + used);copied += used;//更新已复制的数据长度len -= used;/更新剩下需要复制的数据长度tcp_rcv_space_adjust(sk);//重新调整tcp接受窗口skip_copy:if (tp->urg_data && after(tp->copied_seq, tp->urg_seq)) {tp->urg_data = 0;tcp_fast_path_check(sk);//处理完了紧急数据，调转到Fast Path处理}if (TCP_SKB_CB(skb)->has_rxtstamp) {tcp_update_recv_tstamps(skb, &tss);cmsg_flags |= 2;}if (used + offset < skb->len)continue;if (TCP_SKB_CB(skb)->tcp_flags & TCPHDR_FIN)goto found_fin_ok;if (!(flags & MSG_PEEK))sk_eat_skb(sk, skb);continue;found_fin_ok://套接字状态是Fin/* Process the FIN. */WRITE_ONCE(*seq, *seq + 1);//序列号加1if (!(flags & MSG_PEEK))sk_eat_skb(sk, skb);//重新计算tcp窗口break;} while (len > 0);/* According to UNIX98, msg_name/msg_namelen are ignored* on connected socket. I was just happy when found this 8) --ANK*//* Clean up data we have read: This will do ACK frames. */tcp_cleanup_rbuf(sk, copied);release_sock(sk);if (cmsg_flags) {if (cmsg_flags & 2)tcp_recv_timestamp(msg, sk, &tss);if (cmsg_flags & 1) {inq = tcp_inq_hint(sk);put_cmsg(msg, SOL_TCP, TCP_CM_INQ, sizeof(inq), &inq);}}return copied;out:release_sock(sk);return err;recv_urg:err = tcp_recv_urg(sk, msg, len, flags);goto out;recv_sndq:err = tcp_peek_sndq(sk, msg, len);goto out;
}
EXPORT_SYMBOL(tcp_recvmsg);对传输层TCP 的接收函数的总结：
上面很大部分是介绍了接收报文的流程，下面发送报文需要查找路由的函数接口：ip_route_output_flow
