【echart 数据大屏常用图表配置-柱状图】

以下图表适配1090*1080大屏

柱状图

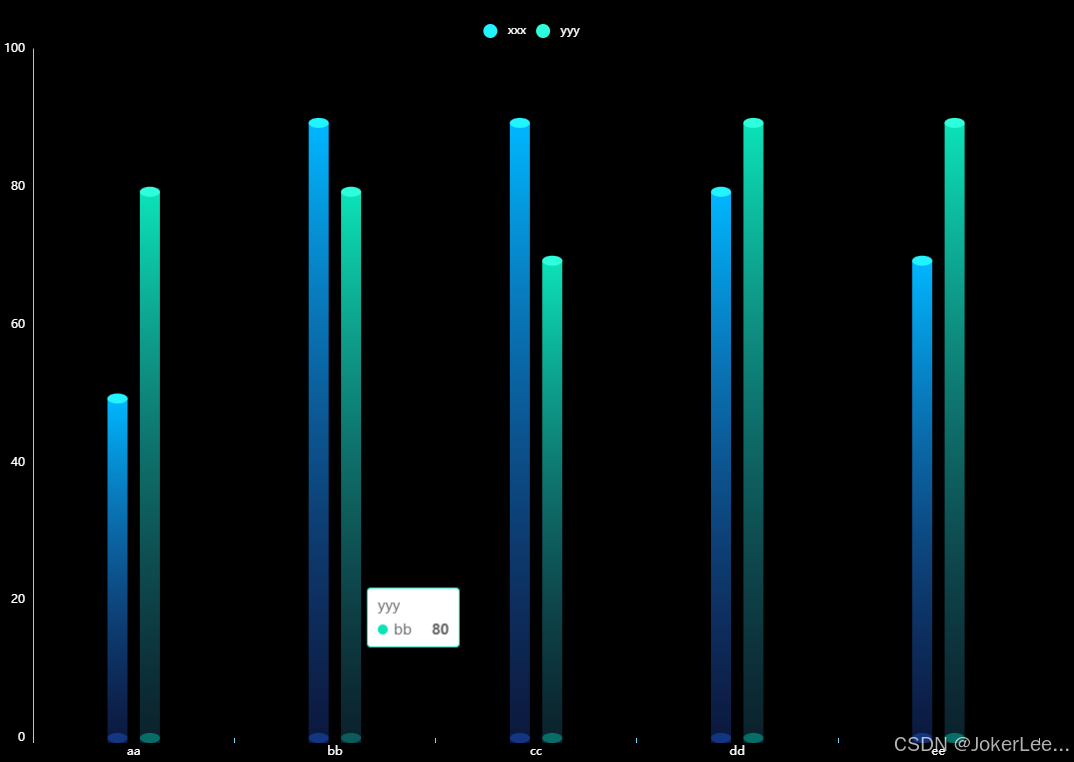

双圆柱图

    const xAxisData = ['aa','bb', 'cc','dd', 'ee'];const data1 = [50,90,90,80,70];const data2 = [80,80,70,90,90];const barWidth = 20;const color1 = {x: 0,y: 0,x2: 0,y2: 1,type: 'linear',global: false,colorStops: [{//第一节下面offset: 0,color: '#00B7FF',},{offset: 1,color: 'rgba(34,68,172,0.35)',},],};const color2 = {x: 0,y: 0,x2: 0,y2: 1,type: 'linear',global: false,colorStops: [{//第一节下面offset: 0,color: '#0BE2B8',},{offset: 1,color: 'rgba(31,93,122,0.35)',},],};option = {backgroundColor: 'rgba(0,0,0,1)',tooltip: {trigger: 'item',},legend: {top: 10,textStyle: {color: '#fff',fontSize: 12,fontWeight: 400},},grid: {top: 40,left: 10,right: 30,bottom: 0,containLabel: true},xAxis: {type: 'category',axisLabel: {color: '#fff',//字体颜色fontSize: 12,},axisLine: { // 轴线的颜色以及宽度show: false,lineStyle: {color: "#7FD6FF",width: 1,},},boundaryGap: true, // 不从原点开始data: xAxisData},yAxis: {type: 'value',// name: '单位: 数量',// nameTextStyle: {//   color: '#fff',//字体颜色//   fontSize: 14,//   fontWeight: 400,//   padding: [0, 50, 0, 0] // 文字往左移动// },axisLine: { // 轴线的颜色以及宽度show: true,lineStyle: {color: "#7FD6FF",width: 1,},},axisLabel: {color: '#fff',//字体颜色fontSize: 12,},boundaryGap: ['0%', '20%'], // 留白策略splitLine:{ // 设置刻度线的样式show: false,lineStyle:{color: "#68B4DD",width: 1,type:'dashed'}},min: 0,max: 100},series: [// 顶部圆形图案{name: 'xxx',type: 'pictorialBar',symbolSize: [barWidth, 10],symbolOffset: ['-81%', 0],symbolPosition: 'end',z: 15,color: '#21F3FF',zlevel: 4,animationDelay: 400,data: data1},{name: 'yyy',type: 'pictorialBar',symbolSize: [barWidth, 10],symbolOffset: ['81%', 0],symbolPosition: 'end',z: 15,color: '#2DFFDC',zlevel: 4,animationDelay: 400,data: data2},// 中间圆柱体{name: 'xxx',type: 'pictorialBar',symbolSize: [barWidth, '100%'],symbolOffset: ['-81%', 5],z: 15,symbol: 'rect',color: color1,zlevel: 3,data: data1},{name: 'yyy',type: 'pictorialBar',symbolSize: [barWidth, '100%'],symbolOffset: ['81%', 5],z: 15,symbol: 'rect',color: color2,zlevel: 2,data: data2},// 底部圆柱体{name: 'xxx',type: 'pictorialBar',symbolSize: [barWidth, 10],symbolOffset: ['-81%', 5],z: 15,color: 'rgba(31,97,234,0.4)',zlevel: 3,data: data1},{name: 'yyy',type: 'pictorialBar',symbolSize: [barWidth, 10],symbolOffset: ['81%', 5],z: 15,color: 'rgba(0,226,192,0.4)',zlevel: 2,data: data2},]};

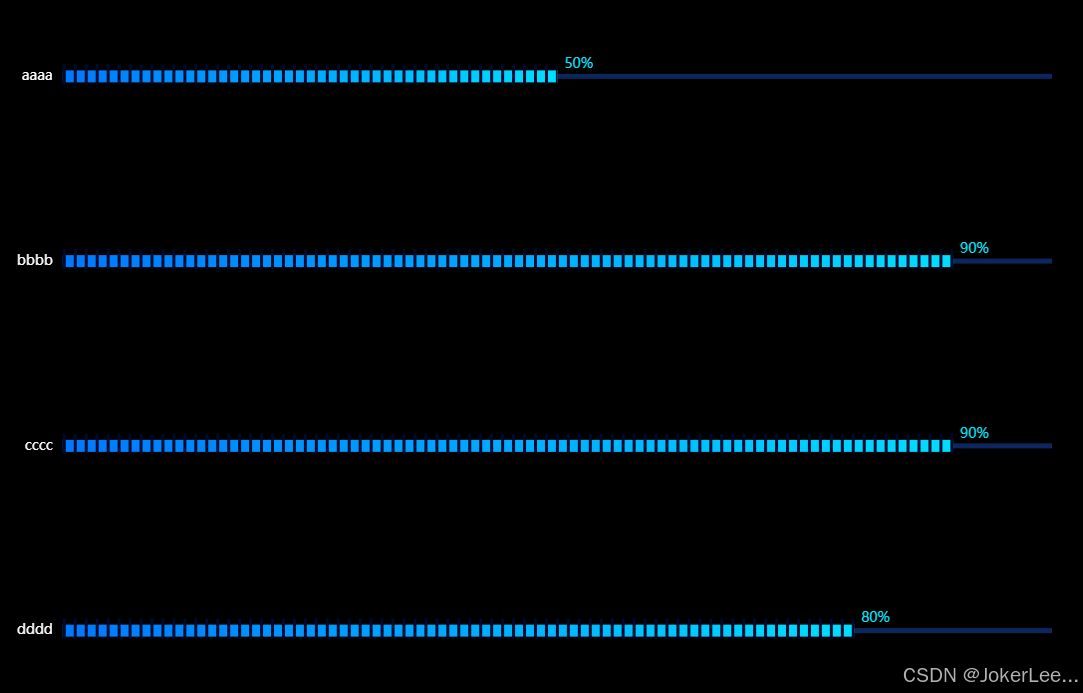

横着刻度柱状图

    const xAxisData = ['aaaa','bbbb', 'cccc','dddd'];const data1 = [50,90,90,80];const symbolData = data1.map(()=> 100);const barWidth = 12;const max = 100;option = {backgroundColor: 'rgba(0,0,0,1)',tooltip: {trigger: 'item',},grid: {top: 10,left: 10,right: 30,bottom: 0,containLabel: true},xAxis: {type: 'value',max: max,splitLine: {show: false},axisLine: {show: false},axisLabel: {show: false},axisTick: {show: false}},yAxis: {type: "category",inverse: true,data: xAxisData,axisLine: {show: false},axisTick: {show: false},axisLabel: {margin: 10,textStyle: {color: "#fff",fontSize: 14}}},series: [{ //内type: 'bar',barWidth: barWidth,legendHoverLink: false,// silent: true,itemStyle: {color: {type: 'linear',x: 0,y: 0,x2: 1,y2: 0,colorStops: [{offset: 0,color: '#0078FF' // 0% 处的颜色}, {offset: 1,color: '#00DEFF' // 100% 处的颜色}],globalCoord: false // 缺省为 false} //底色},label: {show: true, //开启显示offset: [2, -12],position: 'right', //在上方显示formatter: '{c}%',//显示百分号textStyle: { //数值样式color: '#00E3FB',//字体颜色fontSize: 14//字体大小}},zlevel: 2,data: data1},{type: 'pictorialBar',symbol: 'rect',symbolSize: ['100%', 5],z: 15,color: 'rgba(31,97,234,0.4)',zlevel: 1,data: symbolData,},{ //分隔type: "pictorialBar",itemStyle: {color: "#000A2A"},symbolRepeat: "fixed",symbolMargin: 4,symbol: 'rect',symbolClip: true,symbolSize: [3, 20],symbolPosition: "start",symbolOffset: [0, -2],zlevel: 3,symbolBoundingData: max,data: data1}]};

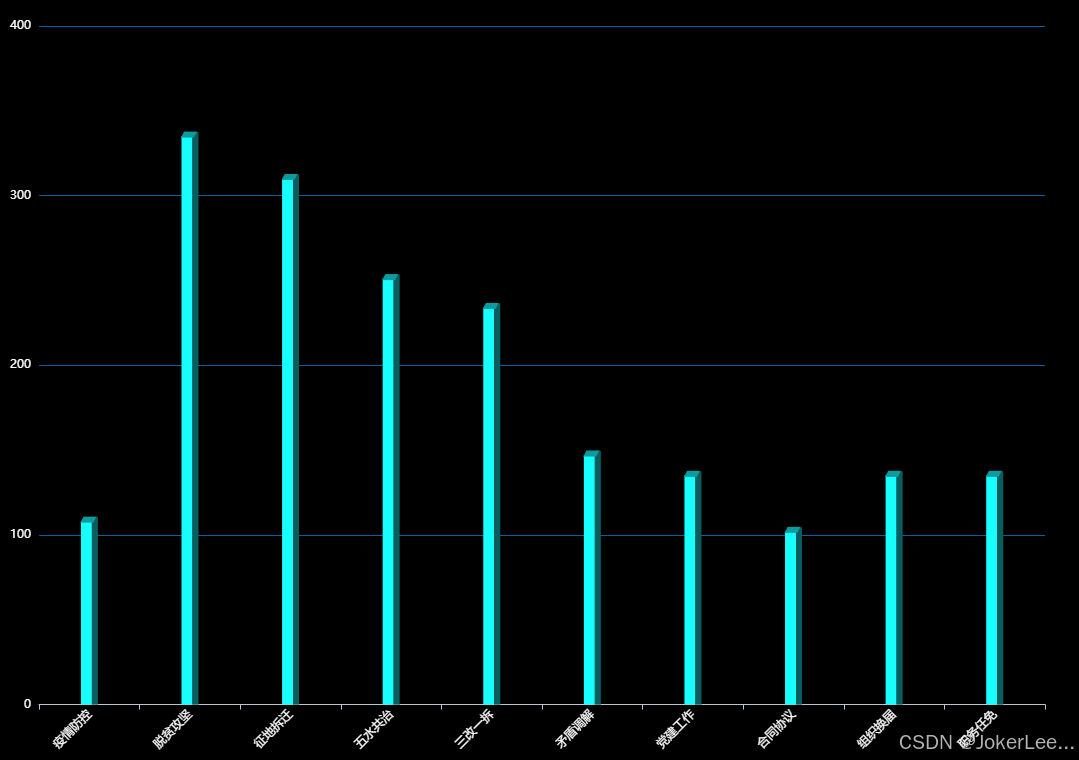

3d柱状图

    const data =  [{ value: 108, name: '疫情防控' },{ value: 335, name: '脱贫攻坚' },{ value: 310, name: '征地拆迁' },{ value: 251, name: '五水共治' },{ value: 234, name: '三改一拆' },{ value: 147, name: '矛盾调解' },{ value: 135, name: '党建工作' },{ value: 102, name: '合同协议' },{ value: 135, name: '组织换届' },{ value: 135, name: '职务任免' },]const sideData = data.map(item => item.value + 2.5)const nameArray = data.map(e =>e.name);const barWidth = 11;option = {backgroundColor: 'rgba(0,0,0,1)',tooltip: {trigger: 'item',},// legend: {//   top: 10,//   textStyle: {//     color: '#fff',//     fontSize: 12,//     fontWeight: 400//   },// },grid: {top: 20,left: 10,right: 30,bottom: 0,containLabel: true},xAxis: {type: 'category',axisLabel: {color: '#fff',//字体颜色fontSize: 12,rotate:45,},axisLine: { // 轴线的颜色以及宽度show: true,lineStyle: {color: "#BAC6D0",width: 1,},},boundaryGap: true, // 不从原点开始data: nameArray},yAxis: {type: 'value',// name: '单位: 数量',// nameTextStyle: {//   color: '#fff',//字体颜色//   fontSize: 14,//   fontWeight: 400,//   padding: [0, 50, 0, 0] // 文字往左移动// },axisLine: { // 轴线的颜色以及宽度show: false,lineStyle: {color: "#7FD6FF",width: 1,},},axisLabel: {color: '#fff',//字体颜色fontSize: 12,},boundaryGap: ['0%', '20%'], // 留白策略splitLine:{ // 设置刻度线的样式show: true,lineStyle:{color: "#0860A5",width: 1,type:'solid'}},},series: [{// 正面name: 'a',tooltip: {show: false},type: 'bar',barWidth: barWidth,itemStyle: {normal: {color: new echarts.graphic.LinearGradient(0, 1, 0, 0, [{offset: 0,color: "#18FDFE" // 0% 处的颜色}, {offset: 1,color: "#18FDFE" // 100% 处的颜色}], false)}},data: data,barGap: 0}, {// 侧面type: 'bar',barWidth: 6,itemStyle: {normal: {color: new echarts.graphic.LinearGradient(0, 1, 0, 0, [{offset: 0,color: "#085D5E" // 0% 处的颜色}, {offset: 1,color: "#085D5E" // 100% 处的颜色}], false)}},barGap: 0,data: sideData}, {name: 'a',tooltip: {show: false},type: 'pictorialBar',itemStyle: {borderWidth: 1,borderColor: '#0571D5',color: '#0D9C9D'},symbol: 'path://M 0,0 l 120,0 l -30,60 l -120,0 z',symbolSize: ['16', '6'],symbolOffset: ['-1', '-5'],symbolPosition: 'end',data: data,z: 3}]};

3d柱状图菱形

    const data =  [{ value: 108, name: '单位1' },{ value: 335, name: '单位2' },{ value: 310, name: '单位3' },{ value: 251, name: '单位4' },{ value: 234, name: '单位5' },{ value: 147, name: '单位6' },{ value: 135, name: '单位7' },{ value: 102, name: '单位8' }]const nameArray = data.map(e =>e.name);const barWidth = 20;const colors = {type: 'linear',x: 0,x2: 1,y: 0,y2: 0,colorStops: [{offset: 0,color: '#06738A' // 最左边}, {offset: 0.5,color: 'rgba(6,115,138,0.7)' // 左边的右边 颜色}, {offset: 0.5,color: 'rgba(43,189,231,0.7)' // 右边的左边 颜色}, {offset: 1,color: 'rgba(43,189,231,0.7)'}]}option = {backgroundColor: 'rgba(0,0,0,1)',title: {text: '标题',textStyle: {fontSize: 14,fontWeight: 400},left: 'center',top: 10},tooltip: {trigger: 'item',},// legend: {//   top: 10,//   textStyle: {//     color: '#fff',//     fontSize: 12,//     fontWeight: 400//   },// },grid: {top: 40,left: 10,right: 30,bottom: 0,containLabel: true},xAxis: {type: 'category',axisLabel: {color: '#fff',//字体颜色fontSize: 12,},axisLine: { // 轴线的颜色以及宽度show: true,lineStyle: {color: "#BAC6D0",width: 1,},},boundaryGap: true, // 不从原点开始data: nameArray},yAxis: {type: 'value',// name: '单位: 数量',// nameTextStyle: {//   color: '#fff',//字体颜色//   fontSize: 14,//   fontWeight: 400,//   padding: [0, 50, 0, 0] // 文字往左移动// },axisLine: { // 轴线的颜色以及宽度show: false,lineStyle: {color: "#7FD6FF",width: 1,},},axisLabel: {color: '#fff',//字体颜色fontSize: 12,},boundaryGap: ['0%', '20%'], // 留白策略splitLine:{ // 设置刻度线的样式show: true,lineStyle:{color: "#B2C2D3",width: 1,type:'dashed'}},},series: [// 顶部矩形{z: 3,type: 'pictorialBar',symbolPosition: 'end',data: data,symbol: 'diamond',symbolOffset: [0, '-50%'],symbolSize: [barWidth, barWidth * 0.5],itemStyle: {normal: {borderWidth: 0,color: 'rgba(43,189,231,0.9)',}},},{type: 'bar',barWidth: barWidth,itemStyle: {normal: {color: colors}},label: {show: false,position: [barWidth / 2, -(barWidth + 20)],color: '#ffffff',fontSize: 14,fontStyle: 'bold',align: 'center',},data: data},// 底部矩形{z: 2,type: 'pictorialBar',data: data,symbol: 'diamond',symbolOffset: [0, '50%'],symbolSize: [barWidth, barWidth * 0.5],itemStyle: {normal: {color: colors}},},]};
