kubernetes安装web界面
DashBoard
为了提供更丰富的用户体验，kubernetes开发了一个基于web的用户界面。用户可以使Bashboard部署容器化的应用，还可以监控应用的状态，执行故障排查以及管理kubernetes中的各种资源。
1.部署bashboard
1.1下载yaml，并运行Dashboard
| kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.3.1/aio/deploy/recommended.yaml |
如果网络不好就复制下面的，将它写入到yaml文件中，执行该文件：
| # Copyright 2017 The Kubernetes Authors. # # Licensed under the Apache License, Version 2.0 (the "License"); # you may not use this file except in compliance with the License. # You may obtain a copy of the License at # # http://www.apache.org/licenses/LICENSE-2.0 # # Unless required by applicable law or agreed to in writing, software # distributed under the License is distributed on an "AS IS" BASIS, # WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. # See the License for the specific language governing permissions and # limitations under the License. apiVersion: v1 kind: Namespace metadata: name: kubernetes-dashboard --- apiVersion: v1 kind: ServiceAccount metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboard --- kind: Service apiVersion: v1 metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboard spec: type: NodePort ports: - port: 443 targetPort: 8443 nodePort: 30009 selector: k8s-app: kubernetes-dashboard --- apiVersion: v1 kind: Secret metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard-certs namespace: kubernetes-dashboard type: Opaque --- apiVersion: v1 kind: Secret metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard-csrf namespace: kubernetes-dashboard type: Opaque data: csrf: "" --- apiVersion: v1 kind: Secret metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard-key-holder namespace: kubernetes-dashboard type: Opaque --- kind: ConfigMap apiVersion: v1 metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard-settings namespace: kubernetes-dashboard --- kind: Role apiVersion: rbac.authorization.k8s.io/v1 metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboard rules: # Allow Dashboard to get, update and delete Dashboard exclusive secrets. - apiGroups: [""] resources: ["secrets"] resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"] verbs: ["get", "update", "delete"] # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map. - apiGroups: [""] resources: ["configmaps"] resourceNames: ["kubernetes-dashboard-settings"] verbs: ["get", "update"] # Allow Dashboard to get metrics. - apiGroups: [""] resources: ["services"] resourceNames: ["heapster", "dashboard-metrics-scraper"] verbs: ["proxy"] - apiGroups: [""] resources: ["services/proxy"] resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"] verbs: ["get"] --- kind: ClusterRole apiVersion: rbac.authorization.k8s.io/v1 metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard rules: # Allow Metrics Scraper to get metrics from the Metrics server - apiGroups: ["metrics.k8s.io"] resources: ["pods", "nodes"] verbs: ["get", "list", "watch"] --- apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboard roleRef: apiGroup: rbac.authorization.k8s.io kind: Role name: kubernetes-dashboard subjects: - kind: ServiceAccount name: kubernetes-dashboard namespace: kubernetes-dashboard --- apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: kubernetes-dashboard roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: kubernetes-dashboard subjects: - kind: ServiceAccount name: kubernetes-dashboard namespace: kubernetes-dashboard --- kind: Deployment apiVersion: apps/v1 metadata: labels: k8s-app: kubernetes-dashboard name: kubernetes-dashboard namespace: kubernetes-dashboard spec: replicas: 1 revisionHistoryLimit: 10 selector: matchLabels: k8s-app: kubernetes-dashboard template: metadata: labels: k8s-app: kubernetes-dashboard spec: containers: - name: kubernetes-dashboard image: kubernetesui/dashboard:v2.3.1 imagePullPolicy: Always ports: - containerPort: 8443 protocol: TCP args: - --auto-generate-certificates - --namespace=kubernetes-dashboard # Uncomment the following line to manually specify Kubernetes API server Host # If not specified, Dashboard will attempt to auto discover the API server and connect # to it. Uncomment only if the default does not work. # - --apiserver-host=http://my-address:port volumeMounts: - name: kubernetes-dashboard-certs mountPath: /certs # Create on-disk volume to store exec logs - mountPath: /tmp name: tmp-volume livenessProbe: httpGet: scheme: HTTPS path: / port: 8443 initialDelaySeconds: 30 timeoutSeconds: 30 securityContext: allowPrivilegeEscalation: false readOnlyRootFilesystem: true runAsUser: 1001 runAsGroup: 2001 volumes: - name: kubernetes-dashboard-certs secret: secretName: kubernetes-dashboard-certs - name: tmp-volume emptyDir: {} serviceAccountName: kubernetes-dashboard nodeSelector: "kubernetes.io/os": linux # Comment the following tolerations if Dashboard must not be deployed on master tolerations: - key: node-role.kubernetes.io/master effect: NoSchedule --- kind: Service apiVersion: v1 metadata: labels: k8s-app: dashboard-metrics-scraper name: dashboard-metrics-scraper namespace: kubernetes-dashboard spec: ports: - port: 8000 targetPort: 8000 selector: k8s-app: dashboard-metrics-scraper --- kind: Deployment apiVersion: apps/v1 metadata: labels: k8s-app: dashboard-metrics-scraper name: dashboard-metrics-scraper namespace: kubernetes-dashboard spec: replicas: 1 revisionHistoryLimit: 10 selector: matchLabels: k8s-app: dashboard-metrics-scraper template: metadata: labels: k8s-app: dashboard-metrics-scraper annotations: seccomp.security.alpha.kubernetes.io/pod: 'runtime/default' spec: containers: - name: dashboard-metrics-scraper image: kubernetesui/metrics-scraper:v1.0.6 ports: - containerPort: 8000 protocol: TCP livenessProbe: httpGet: scheme: HTTP path: / port: 8000 initialDelaySeconds: 30 timeoutSeconds: 30 volumeMounts: - mountPath: /tmp name: tmp-volume securityContext: allowPrivilegeEscalation: false readOnlyRootFilesystem: true runAsUser: 1001 runAsGroup: 2001 serviceAccountName: kubernetes-dashboard nodeSelector: "kubernetes.io/os": linux # Comment the following tolerations if Dashboard must not be deployed on master tolerations: - key: node-role.kubernetes.io/master effect: NoSchedule volumes: - name: tmp-volume emptyDir: {} |
1.2修改文件中Service类型（字段标红），使其可以对外服务
2.部署：
| [root@master k8s.sh]# kubectl apply -f recommended.yaml namespace/kubernetes-dashboard unchanged serviceaccount/kubernetes-dashboard unchanged service/kubernetes-dashboard configured secret/kubernetes-dashboard-certs unchanged secret/kubernetes-dashboard-csrf configured Warning: kubectl apply should be used on resource created by either kubectl create --save-config or kubectl apply secret/kubernetes-dashboard-key-holder configured configmap/kubernetes-dashboard-settings unchanged role.rbac.authorization.k8s.io/kubernetes-dashboard unchanged clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard unchanged rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard unchanged clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard unchanged deployment.apps/kubernetes-dashboard unchanged service/dashboard-metrics-scraper unchanged deployment.apps/dashboard-metrics-scraper unchanged |
2.1查看namespace下的kubernetes-dashboard下的资源
| [root@master k8s.sh]# kubectl get pod,svc -n kubernetes-dashboard NAME READY STATUS RESTARTS AGE pod/dashboard-metrics-scraper-894c58c65-tb7tl 1/1 Running 0 19m pod/kubernetes-dashboard-555f8cc76f-6jl5g 1/1 Running 0 19m NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE service/dashboard-metrics-scraper ClusterIP 10.98.192.237 <none> 8000/TCP 19m service/kubernetes-dashboard NodePort 10.99.0.66 <none> 443:30009/TCP 19m |
2.2创建访问账号，获取token
| [root@master k8s.sh]# kubectl create serviceaccount dashboard-admin -n kubernetes-dashboard serviceaccount/dashboard-admin created [root@master k8s.sh]# kubectl create clusterrolebinding dashboard-admin-rb --clusterrole=cluster-admin --serviceaccount=kubernetes-dashboard:dashboard-admin clusterrolebinding.rbac.authorization.k8s.io/dashboard-admin-rb created [root@master k8s.sh]# kubectl get secrets -n kubernetes-dashboard | grep dashboard-admin dashboard-admin-token-s7m7t kubernetes.io/service-account-token 3 18s [root@master k8s.sh]# kubectl describe secrets dashboard-admin-token-s7m7t -n kubernetes-dashboard Name: dashboard-admin-token-s7m7t Namespace: kubernetes-dashboard Labels: <none> Annotations: kubernetes.io/service-account.name: dashboard-admin kubernetes.io/service-account.uid: 2bc7422b-92b0-40a0-a748-5e37d2d2e615 Type: kubernetes.io/service-account-token Data ==== ca.crt: 1025 bytes namespace: 20 bytes token: eyJhbGciOiJSUzI1NiIsImtpZCI6IlpTZnJJb01QVkxhTlBUYWgxRWxNZF9XbHQ4ZjRwSWxtdm42cDdwbHhtaFUifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlcm5ldGVzLWRhc2hib2FyZCIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjt291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tczdtN3QiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY3NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiMmJjNzQyMmItOTJiMC00MGEwLWE3NDgtNWUzN2QyZDJlNjE1Iiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmVybmV0ZXMtZGFzaGJvYXJkOmRhc2hib2FyZC1hZG1pbiJ9.rOc7kAUHMT8LT1Kssi2l4e6W5LP1QT1pHZbR6LcIqedh9Jt-2wiEk-0uu7A19MJ5c4qIMS4ul8N25OvLrwkfBVeN-XC5dqIU23SFrypfNSwrwGFqp2d_-BQ2tg9NUESquj0NRWCMJKSGjrtDBHf_P-vDNCENxsT_-5A2oUbp1d_APE1UsaYtYmnUAAuIHO3u-0Dvjb82f_KPZJ1UyI2c2iJqDmmmuFUqf7HcIZAsN0i-SuO4JQxg4crfRVnFANuxt6Je3OFBDcQGhn00MEr2nB9oBYHztyOmFkFEq4Fyj8NSH7UDxLpCLGfuVw6hu00skMC3oga_-Y-IuXgsaJeQ4Q |
3.访问

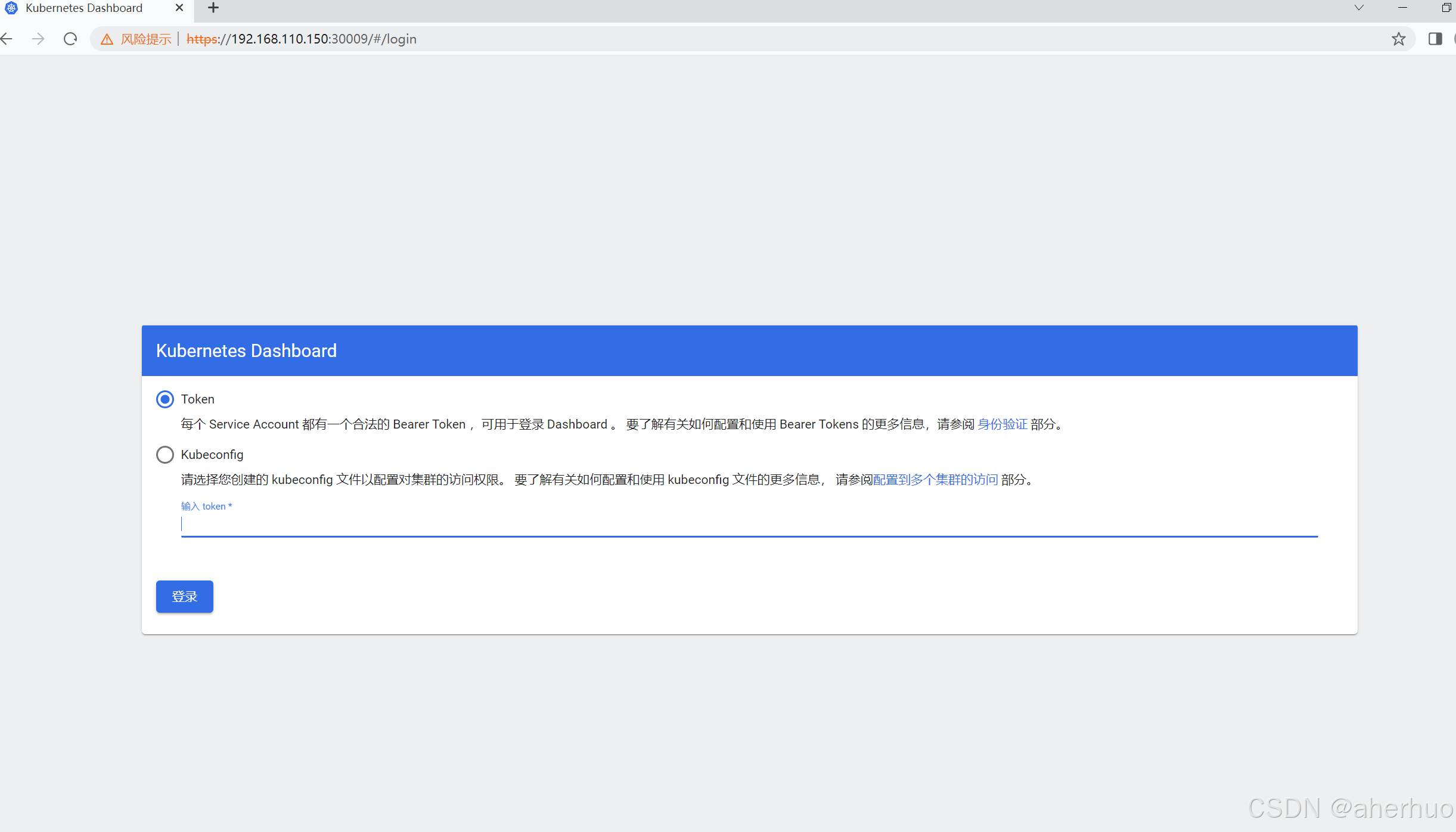

3.1通过浏览器访问Dashboard的UI，在登录页面上输入上面的token

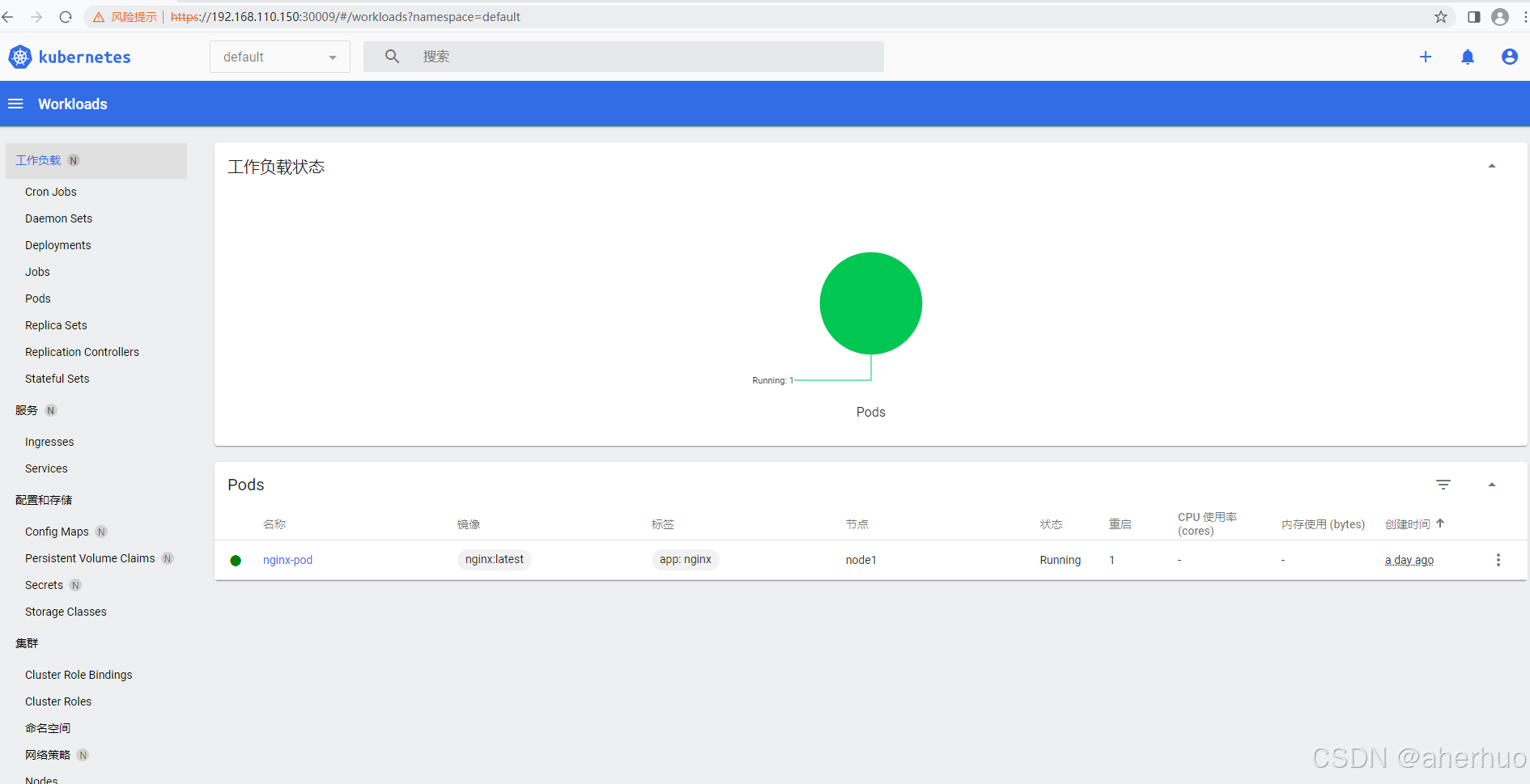

出现下面的页面代表成功
3.2使用Dashboard
（1）查看：

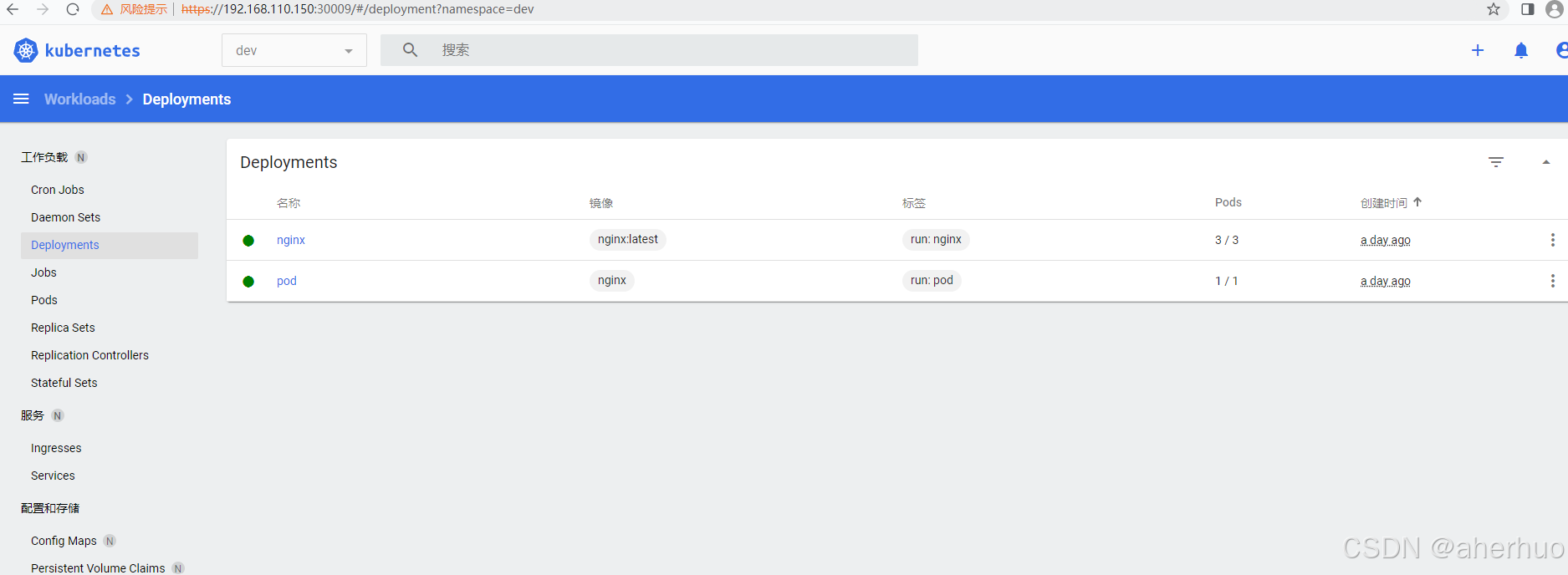

选择指定的命名空间dev，点击deployment，查看dev空间下的所有deployment

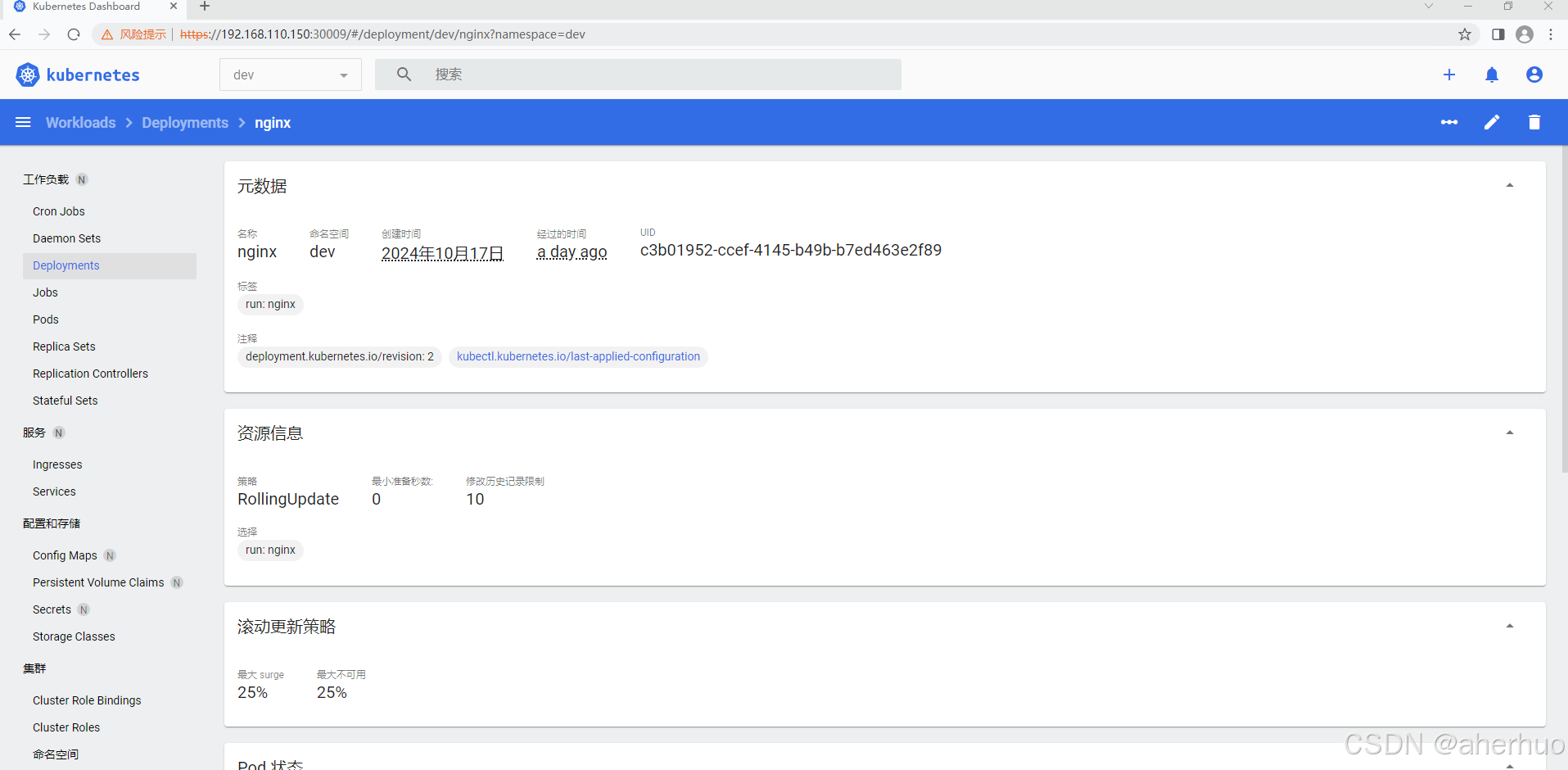

点击nginx：
（2）扩缩容

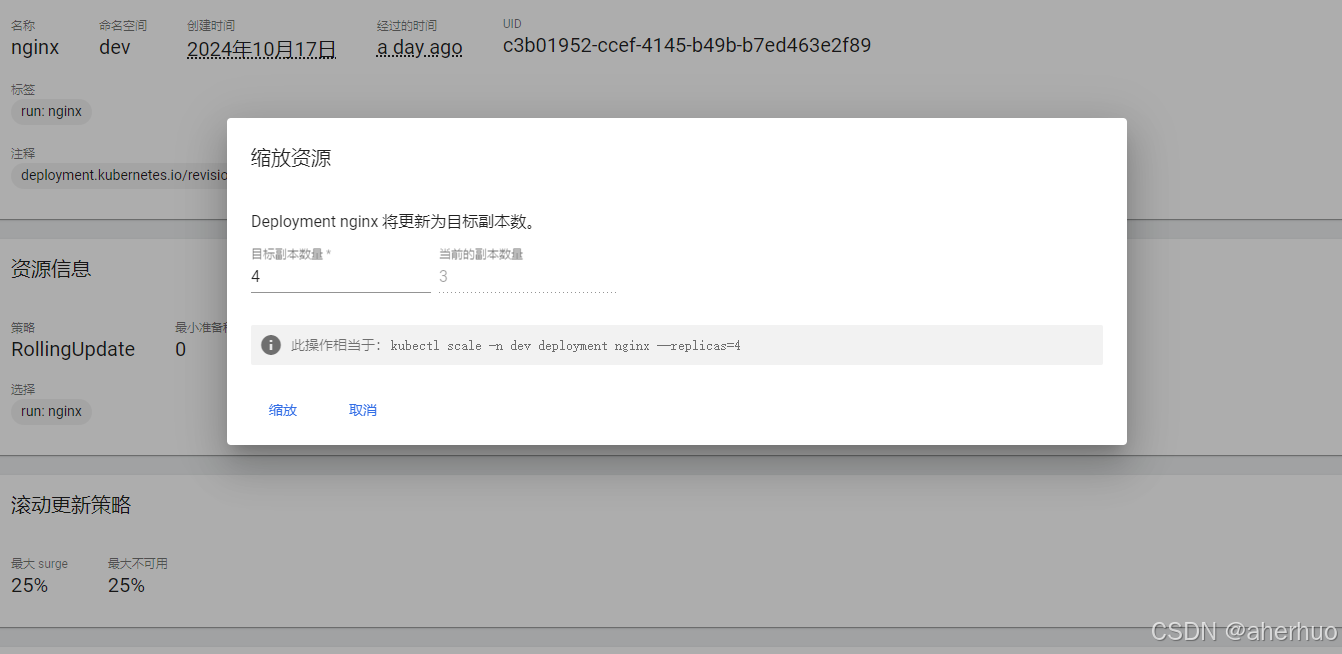

点击红框，指定目标副本数量，点击确定
（3）编辑
在deployment上点击绿框，修改yaml文件，点击确定
（4）查看pod

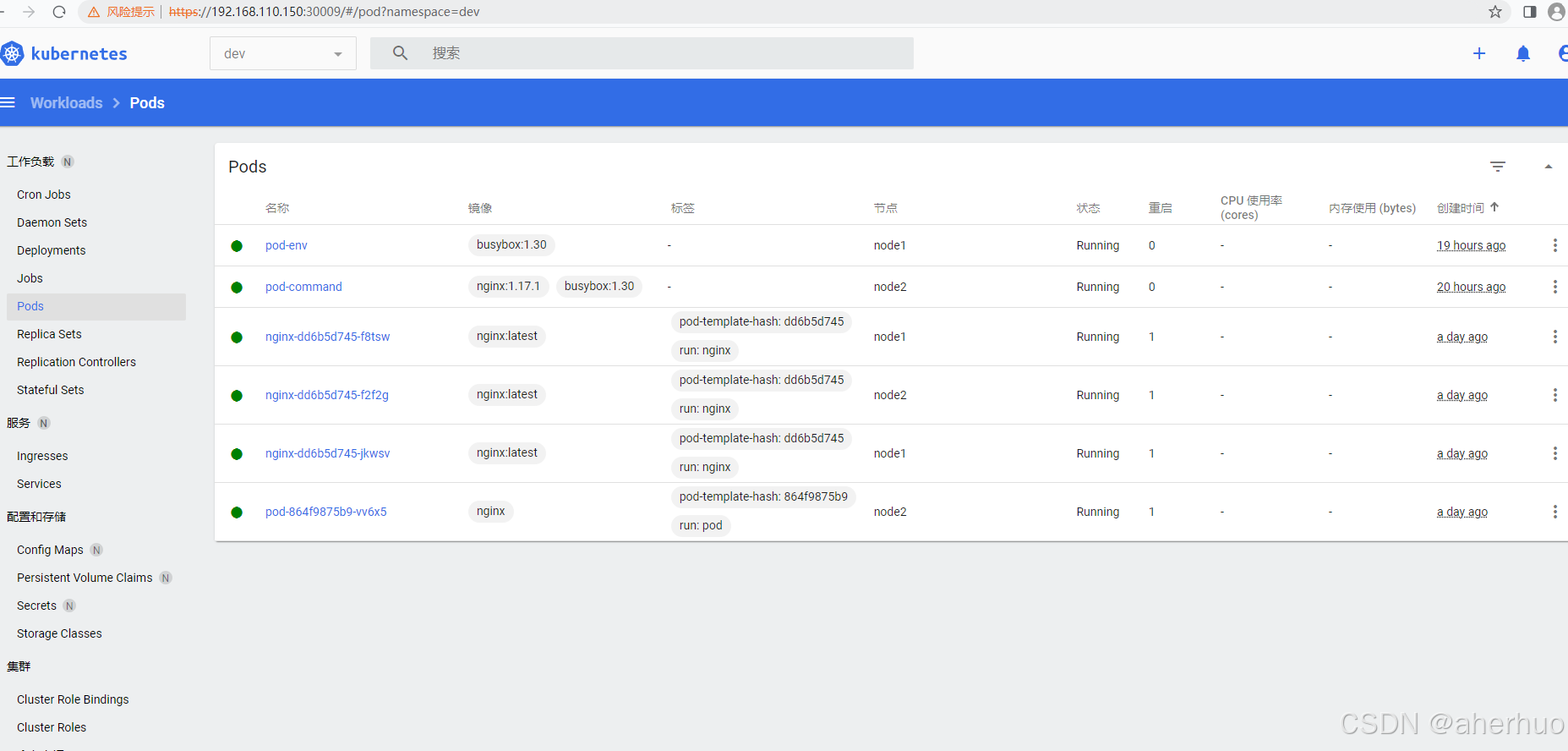

点击pods，查看pods列表
（5）操作pod

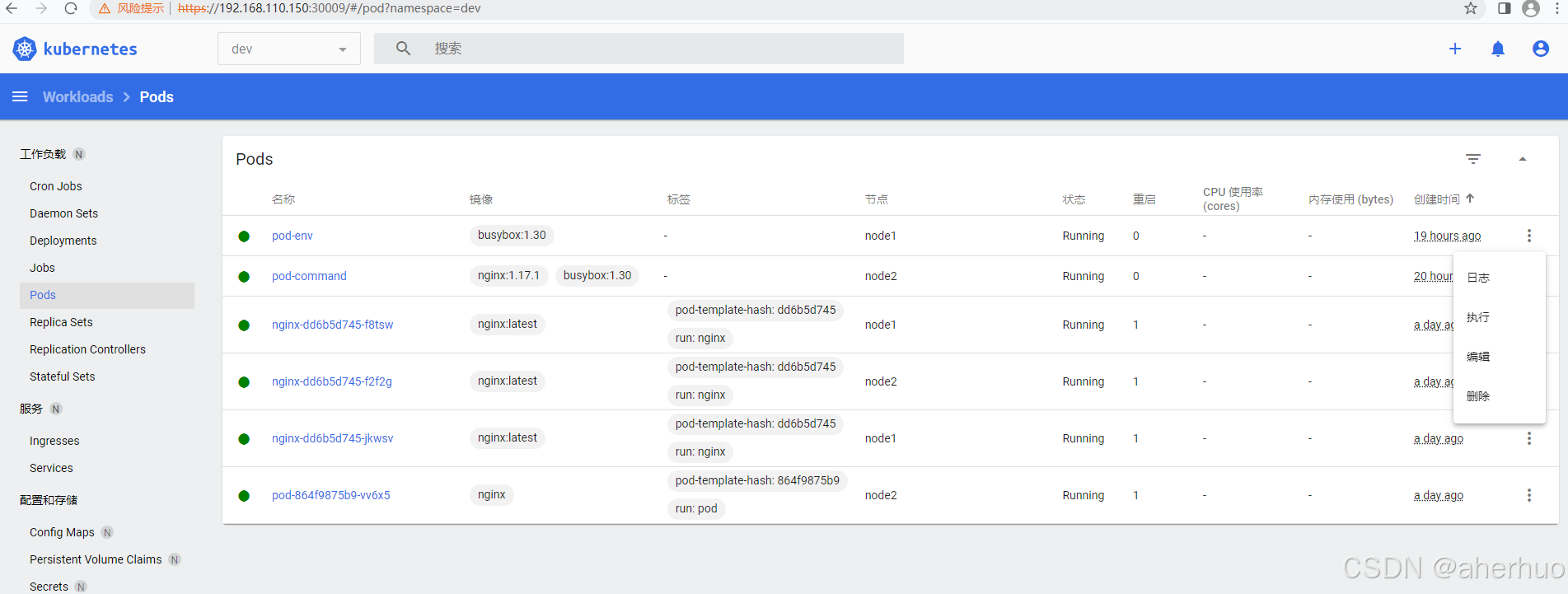

选中某个pod，可以对其执行日志（logs）、进入执行（exec）、编辑、删除操作

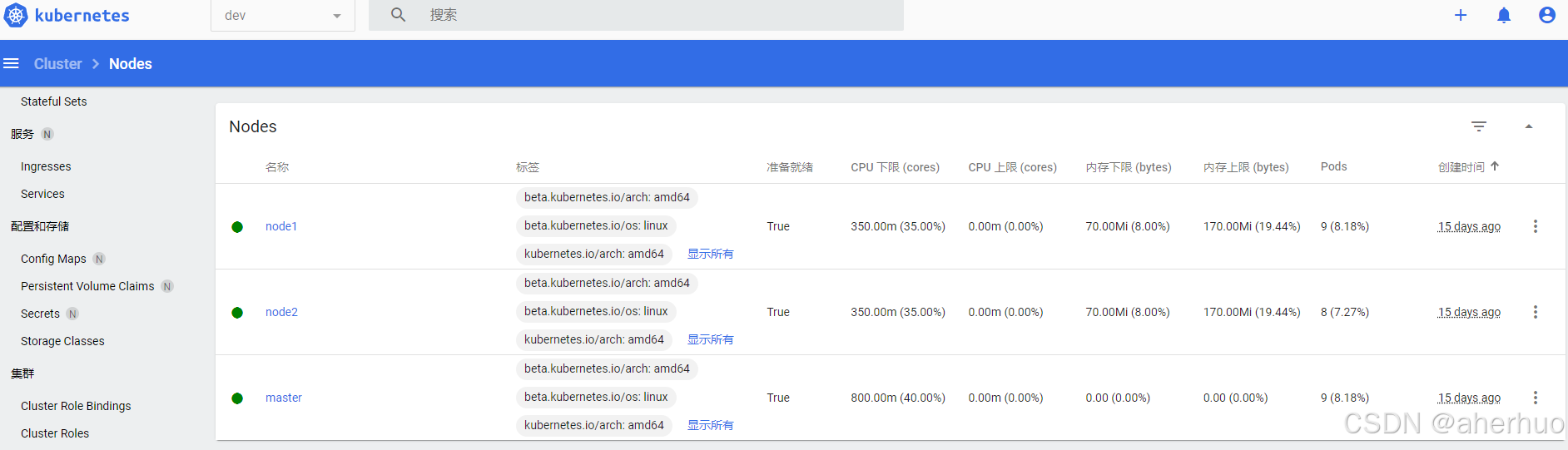

（6）查看节点状态
